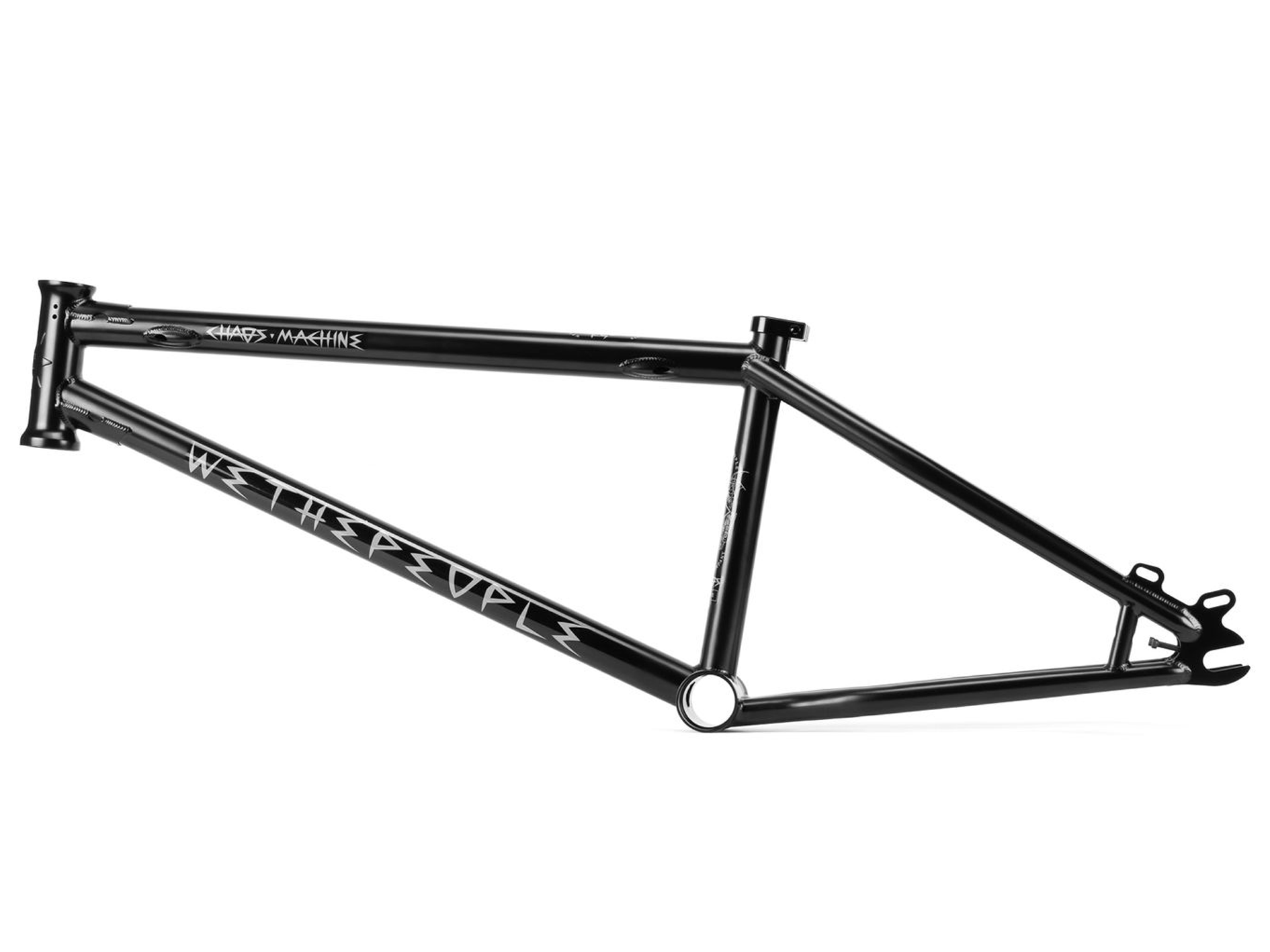

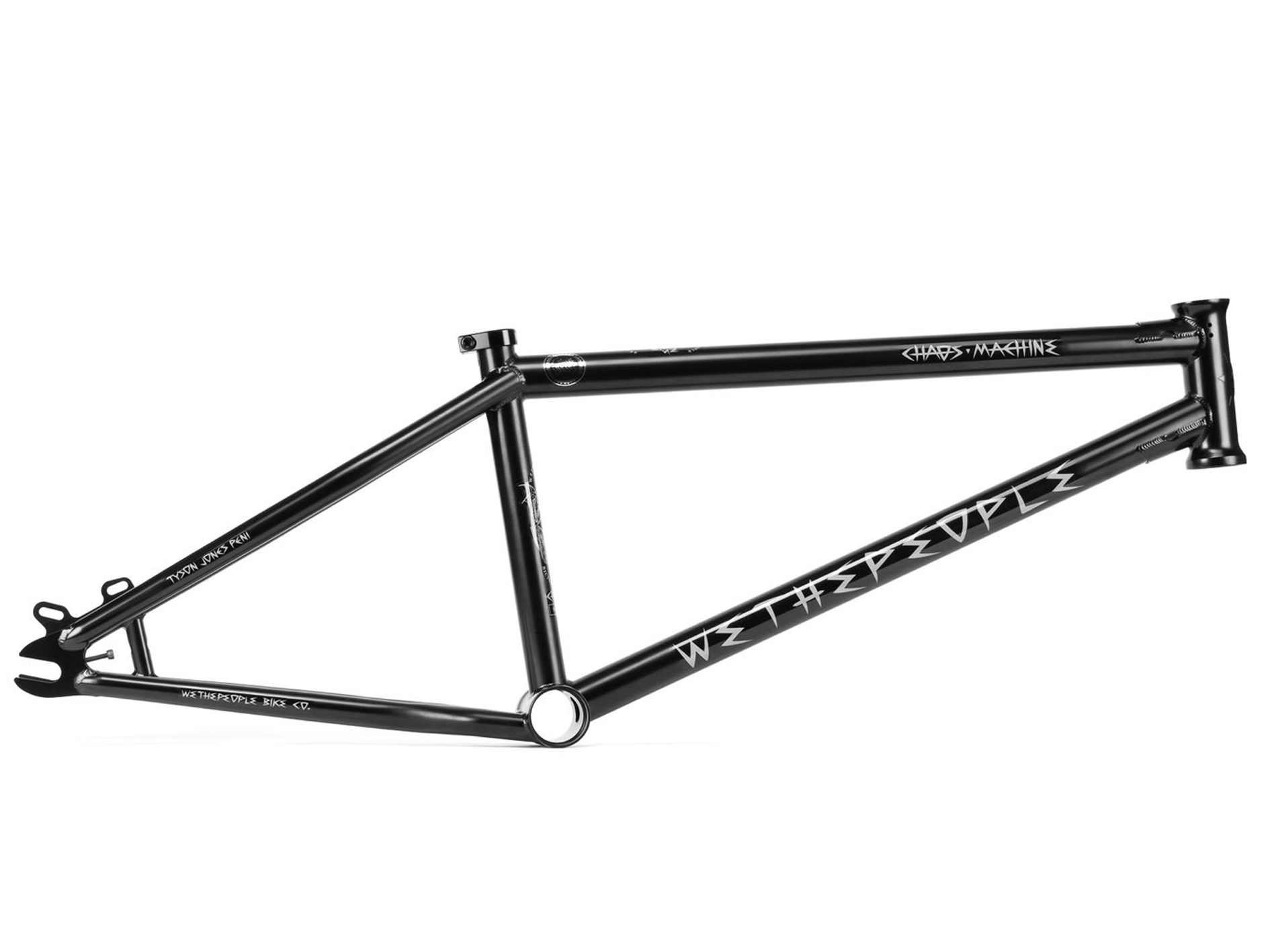

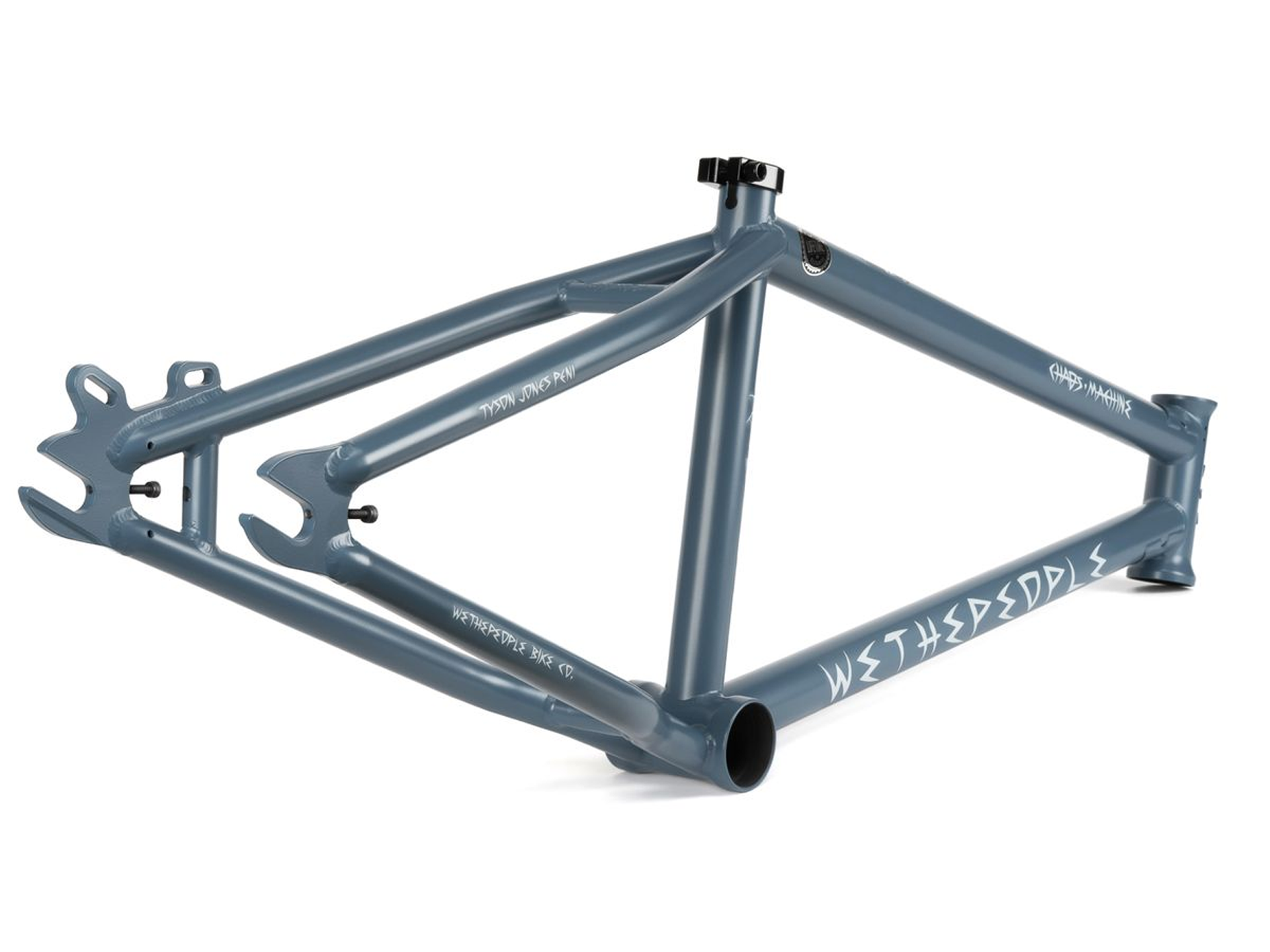

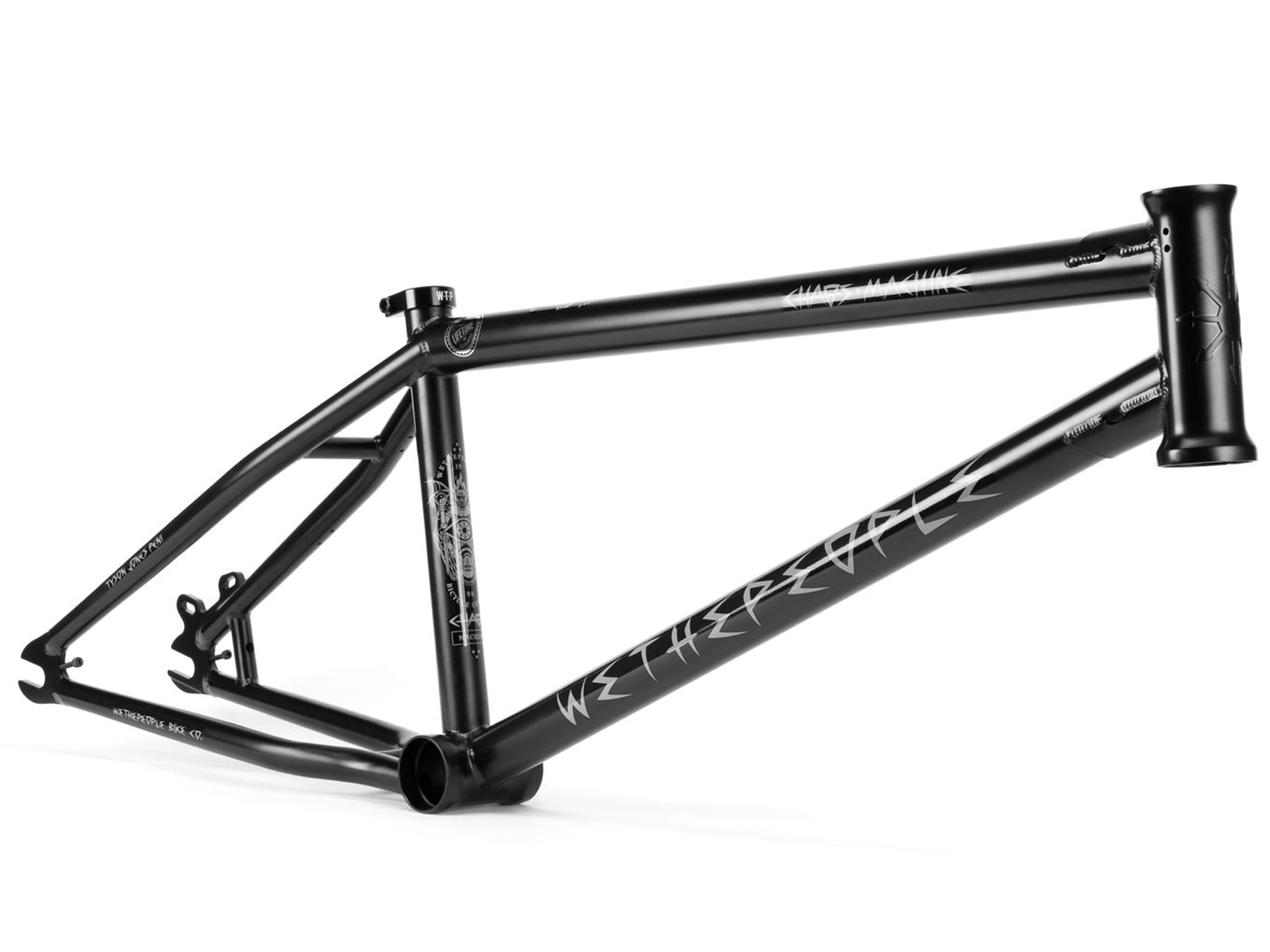

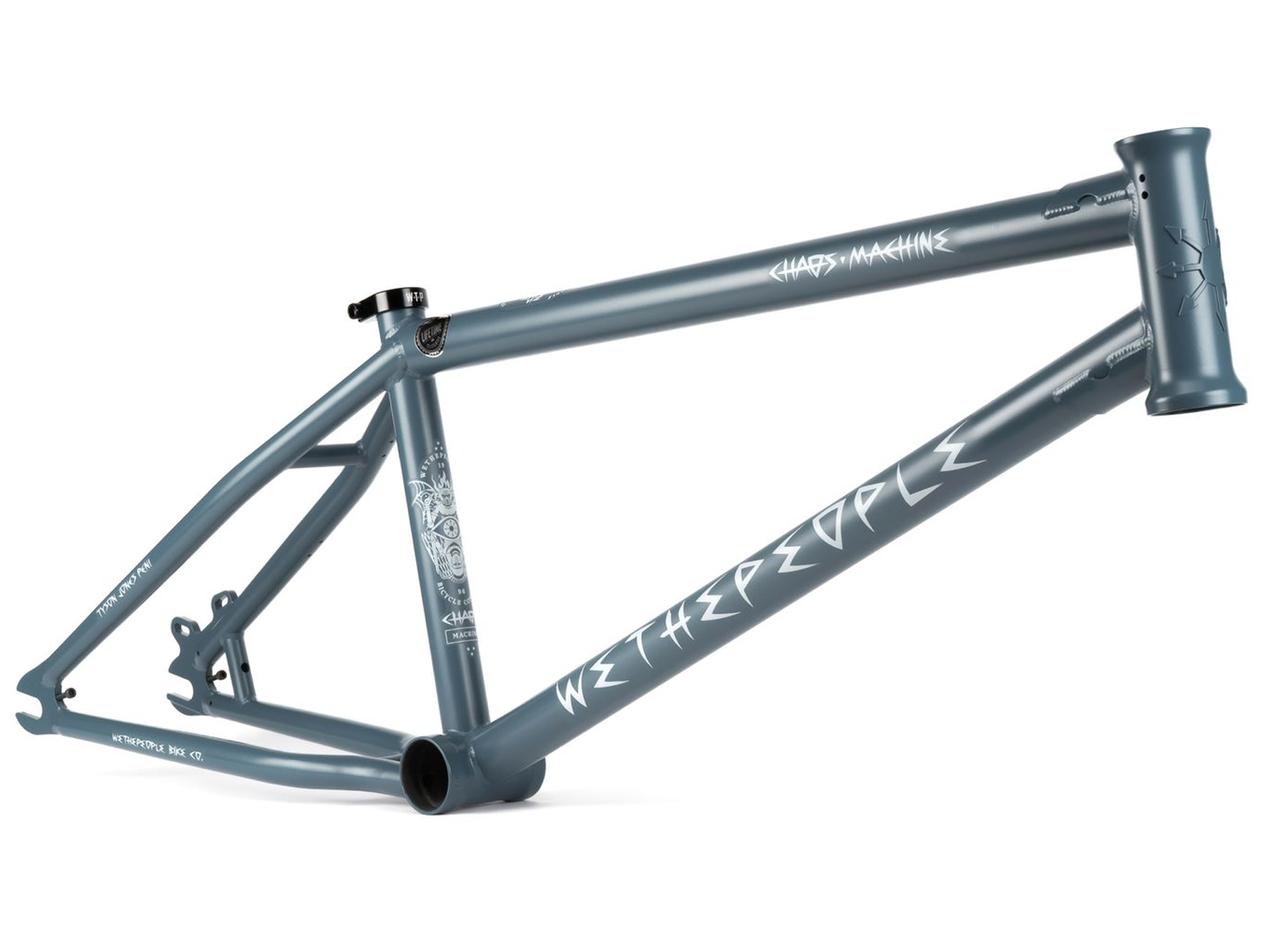

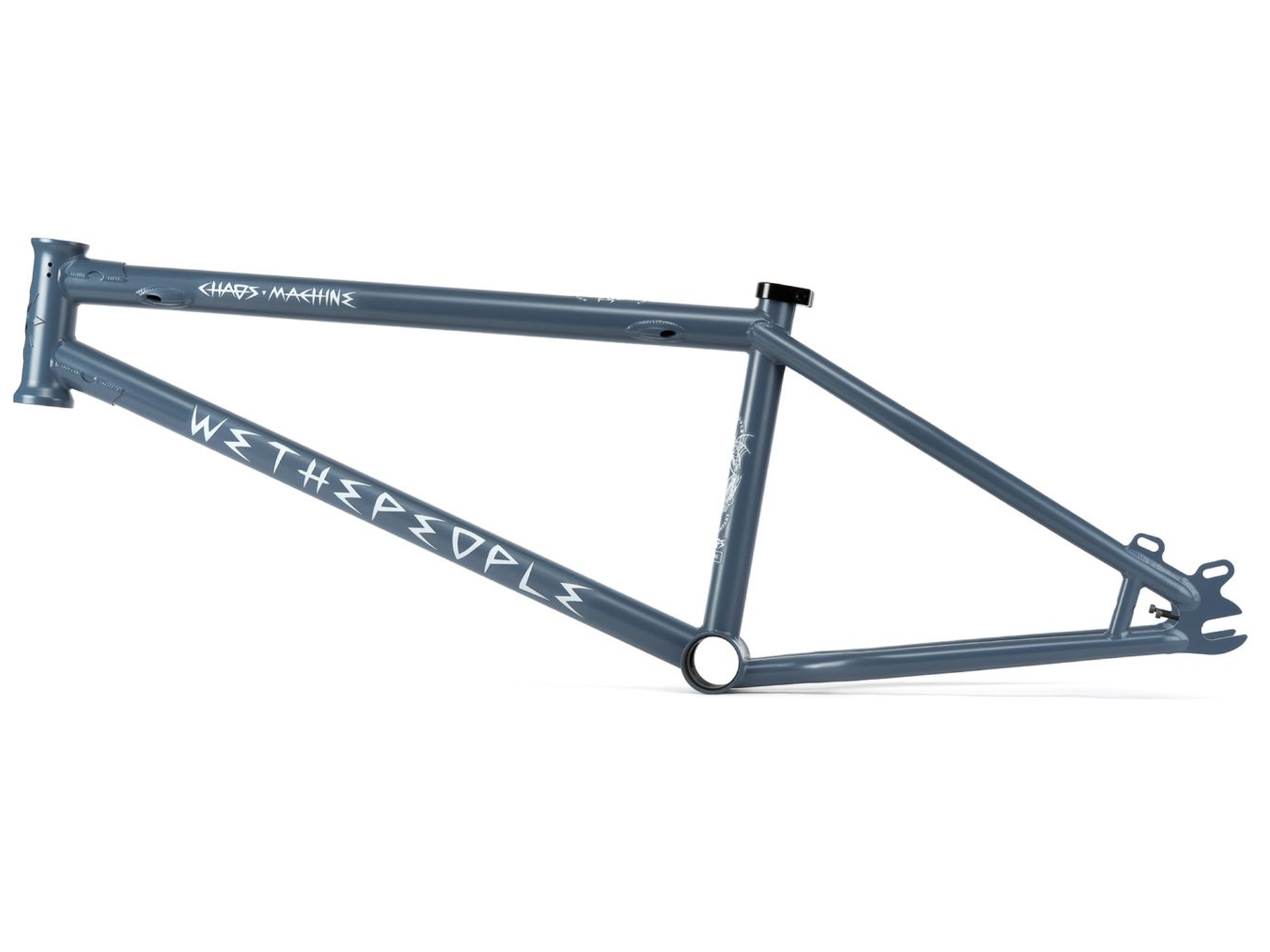

Wethepeople Chaos Machine V2 Frame (Tyson Jones-Peni Signature)

Back for another round of chaos! The V2 Chaos Machine frame is the same epic trail/bowl frame you saw the first time, the signature frame of Wethepeople team rider / Backbone BMX owner Tyson Jones-Peni.

Tyson saw a few tweaks from the first version, to make the V2 Chaos Machine frame even better.

Firstly, the second version of the Chaos Machine frame is disc brake only.

This makes the frame even cleaner.

Second, a drill hole through the disc brace on the seat/chainstay, to make adjusting the built in chain tensioners easier.

Third, and most important, the V2 Chaos Machine features internal cable routing through the top tube!

This adds an extra touch of class, making the final look of the new WTP Chaos Machine frame even nicer.

Still a long backend, long top tube options, tall stand over and extra details that scream "built for speed", you're going to be stoked on the latest incarnation of the Wethepeople Chaos Machine.

NOTE: There ae no gyro tab holes on the final frame.

SPECS:

• TOP TUBE LENGTH: 21", 21.35" & 21.7"
• CHAIN STAY LENGTH: 14.1" (slammed) – 14.75" (optimized for 14.1" / 14.35" / 14.7" with 30/9 gearing)
• HEAD TUBE ANGLE: 74.25°
• SEAT TUBE ANGLE: 71°
• BB HEIGHT: 11.5"
• STAND OVER HEIGHT: 9.5"

FEATURES:

• Butted, Japanese seamless 4130 crmo tubing

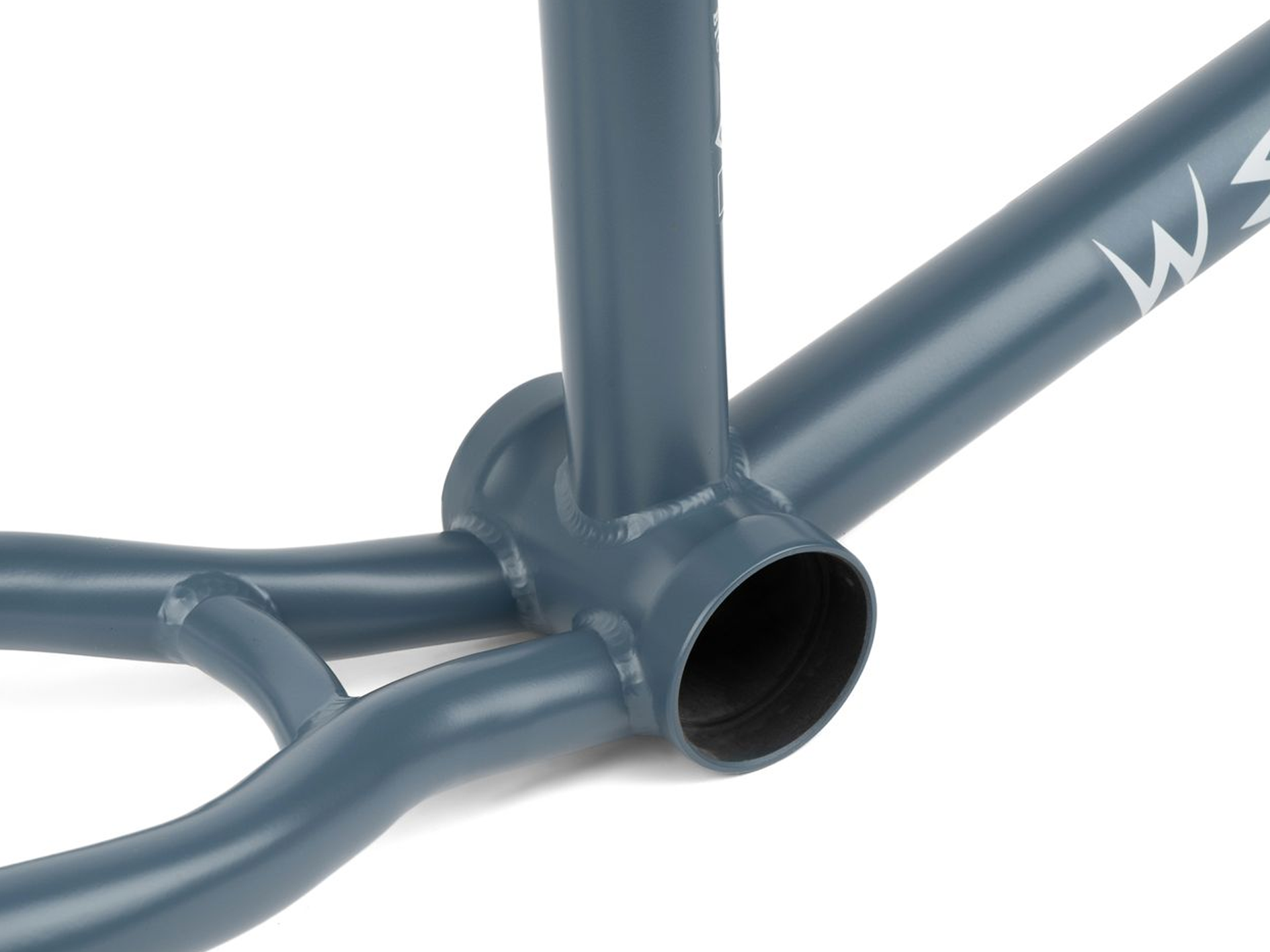

• 74mm mid size BB
• 127mm cnc machined and heat-treated head tube for less spacers with an uncut fork

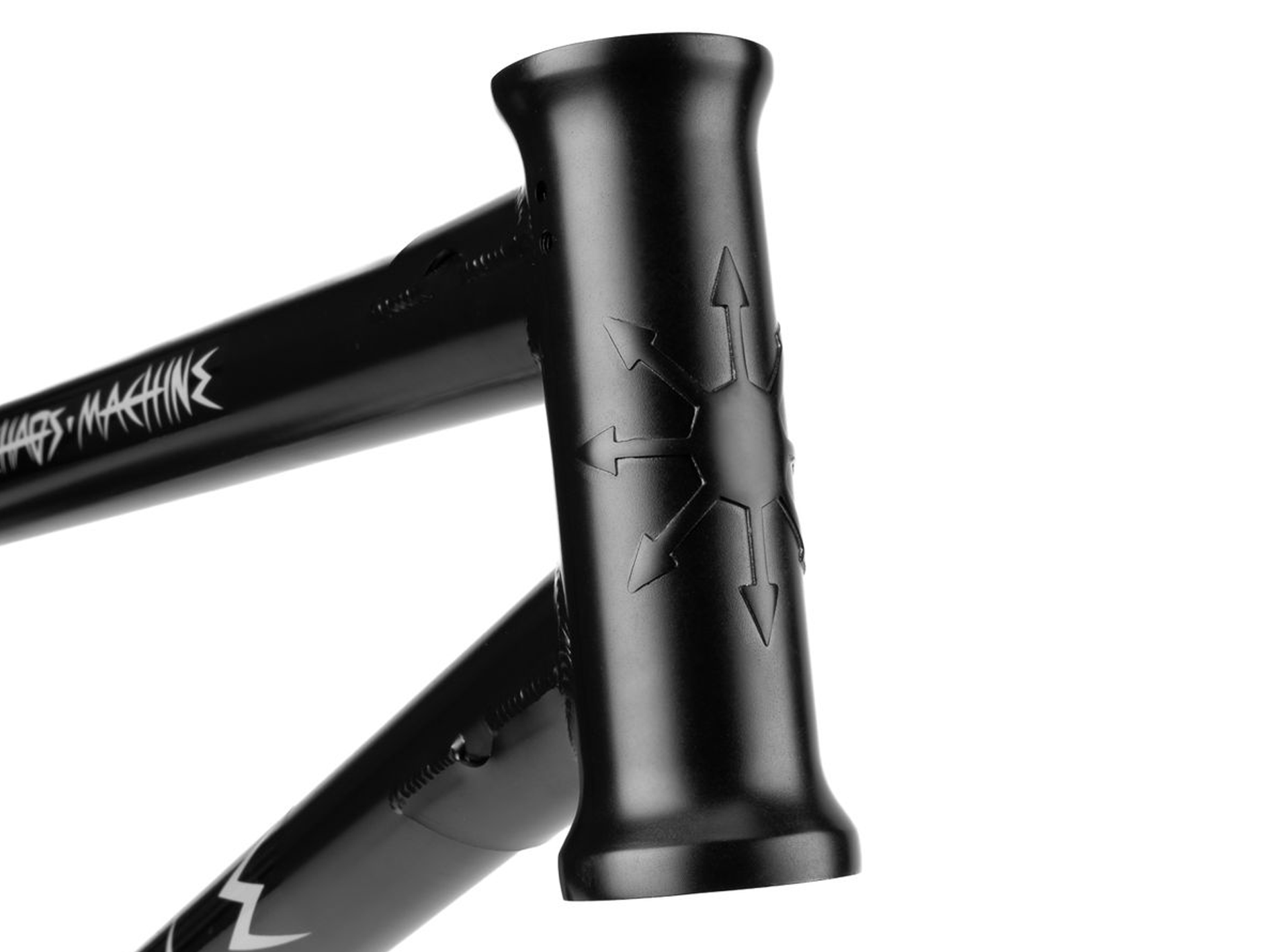

• Chaos logo head tube badge

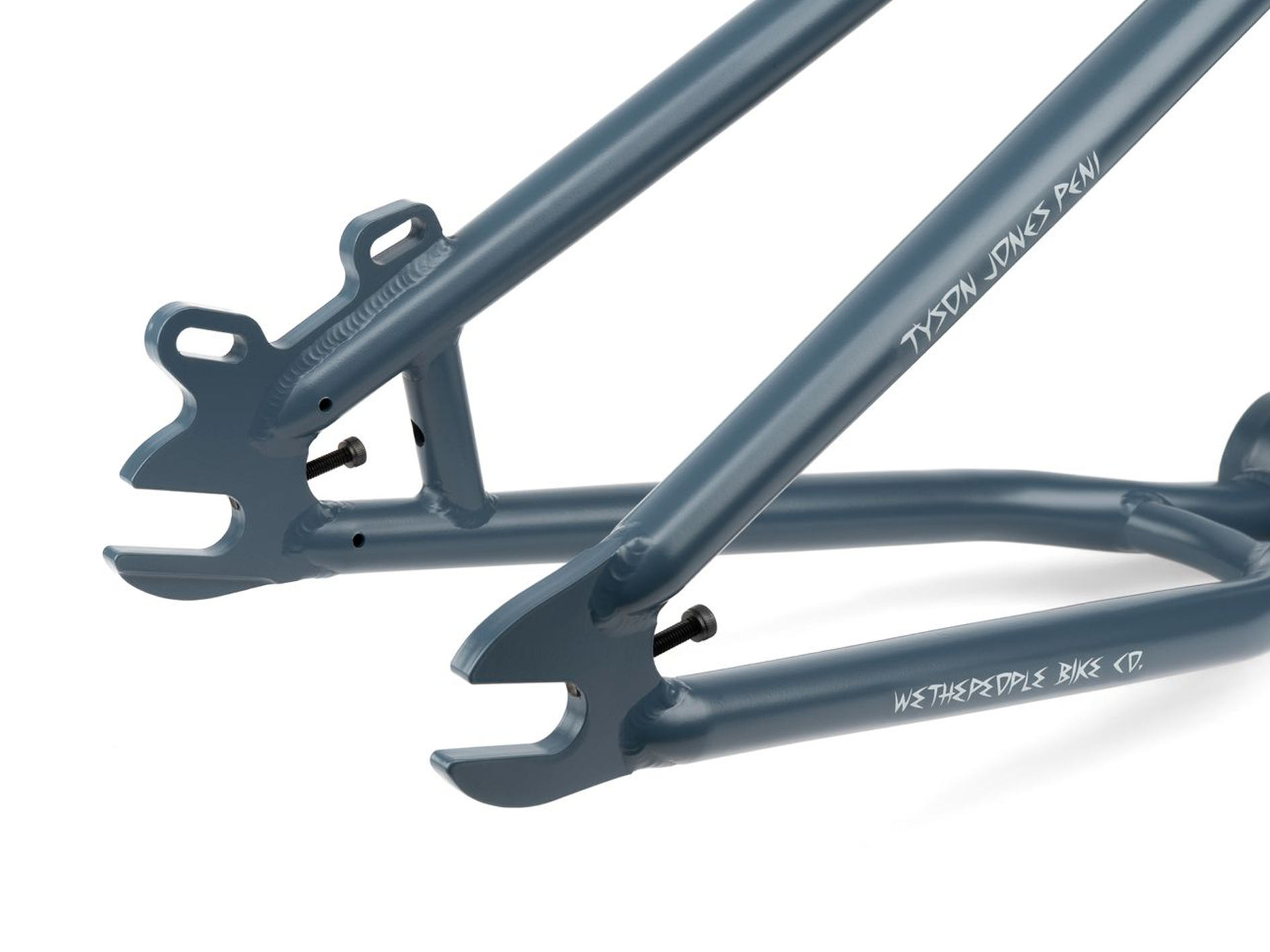

• Minimal size dropouts, not suitable for pegs, 6mm cnc machined heat-treated CRMO

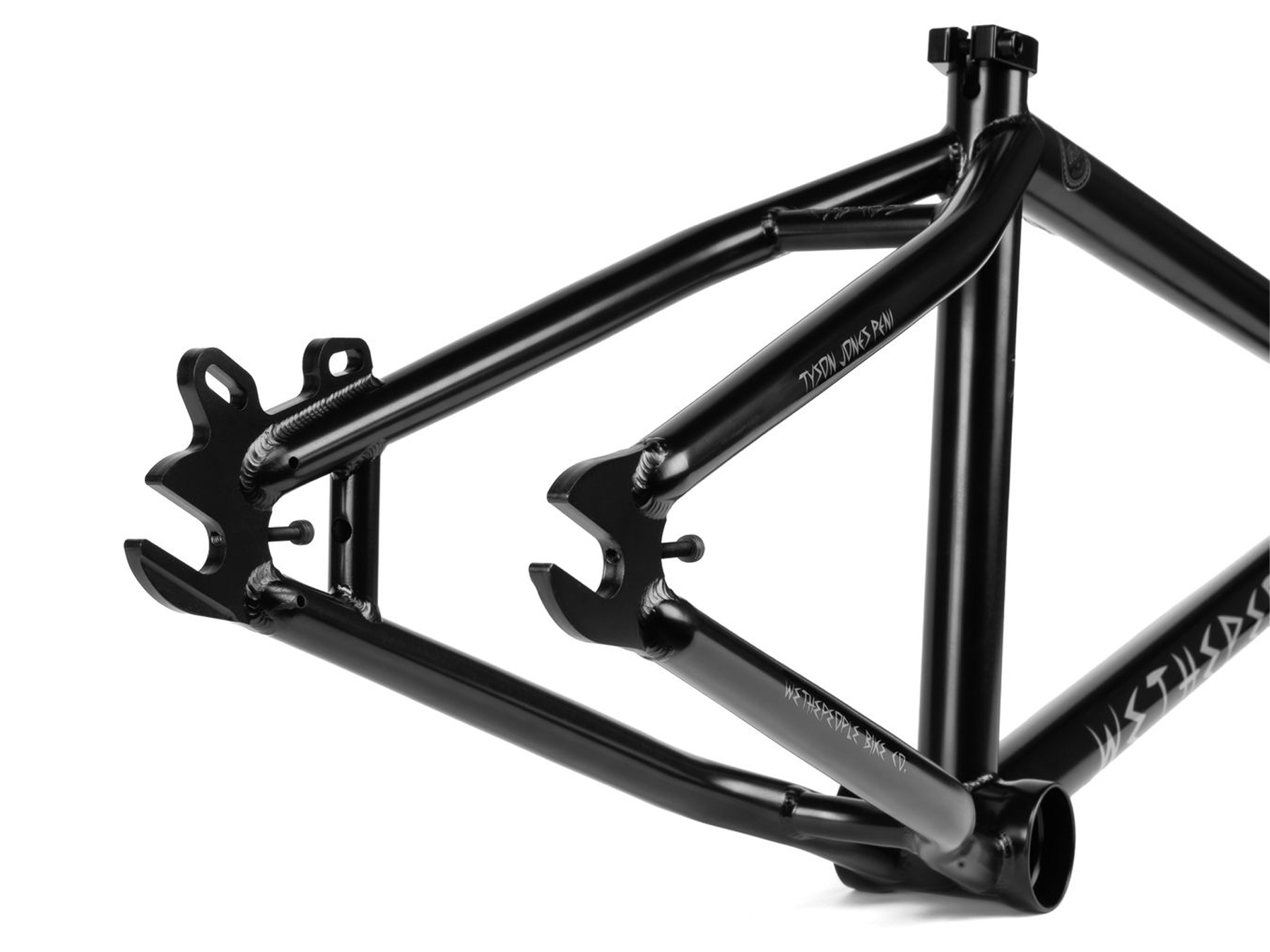

• Integrated chain tensioners
• IS Disc mount brakes for 120-160mm rotors, removable brake mounts on rear seat stay

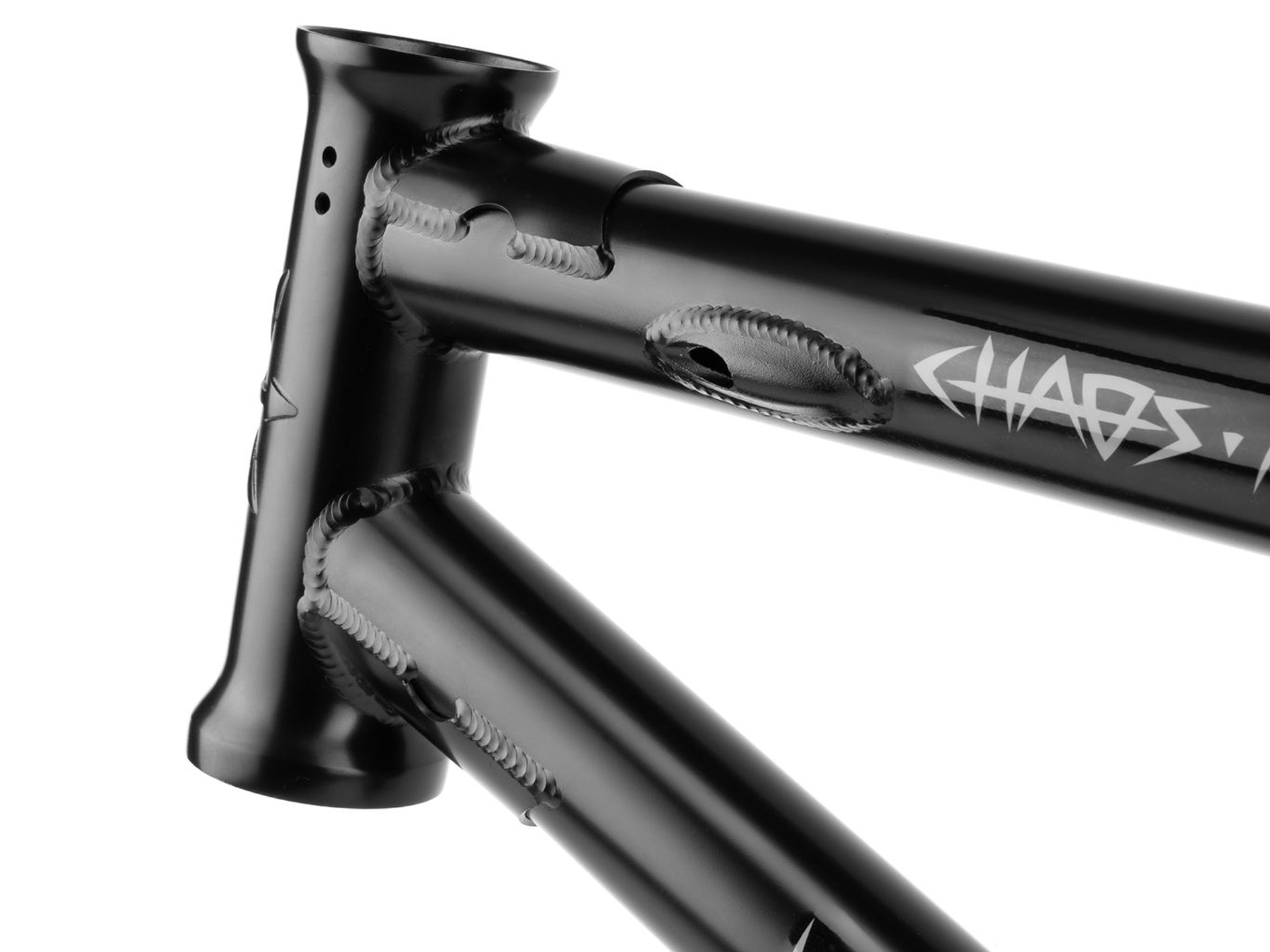

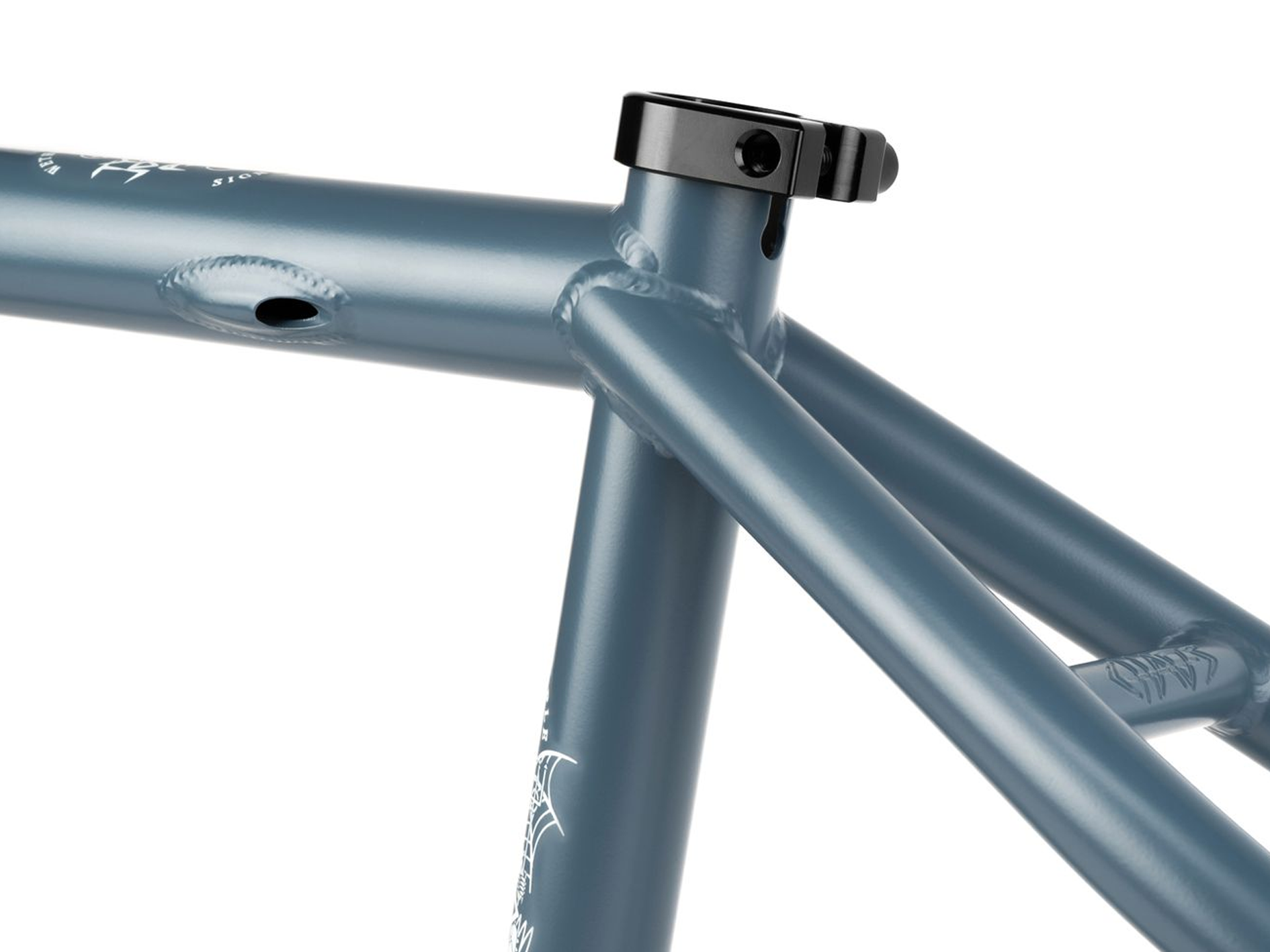

• Internal cable routing through top tube
• Tyson Jones-Peni signature trail/transition frame
• Long and stable trail geometry
• Unique disc brake mount works in multiple chain stay positions
• Larger radius stay tubing for a stiffer and stronger back end
• CNC machined 'CHAOS' seat stay bridge
• Larger 1.8mm welding at head tube

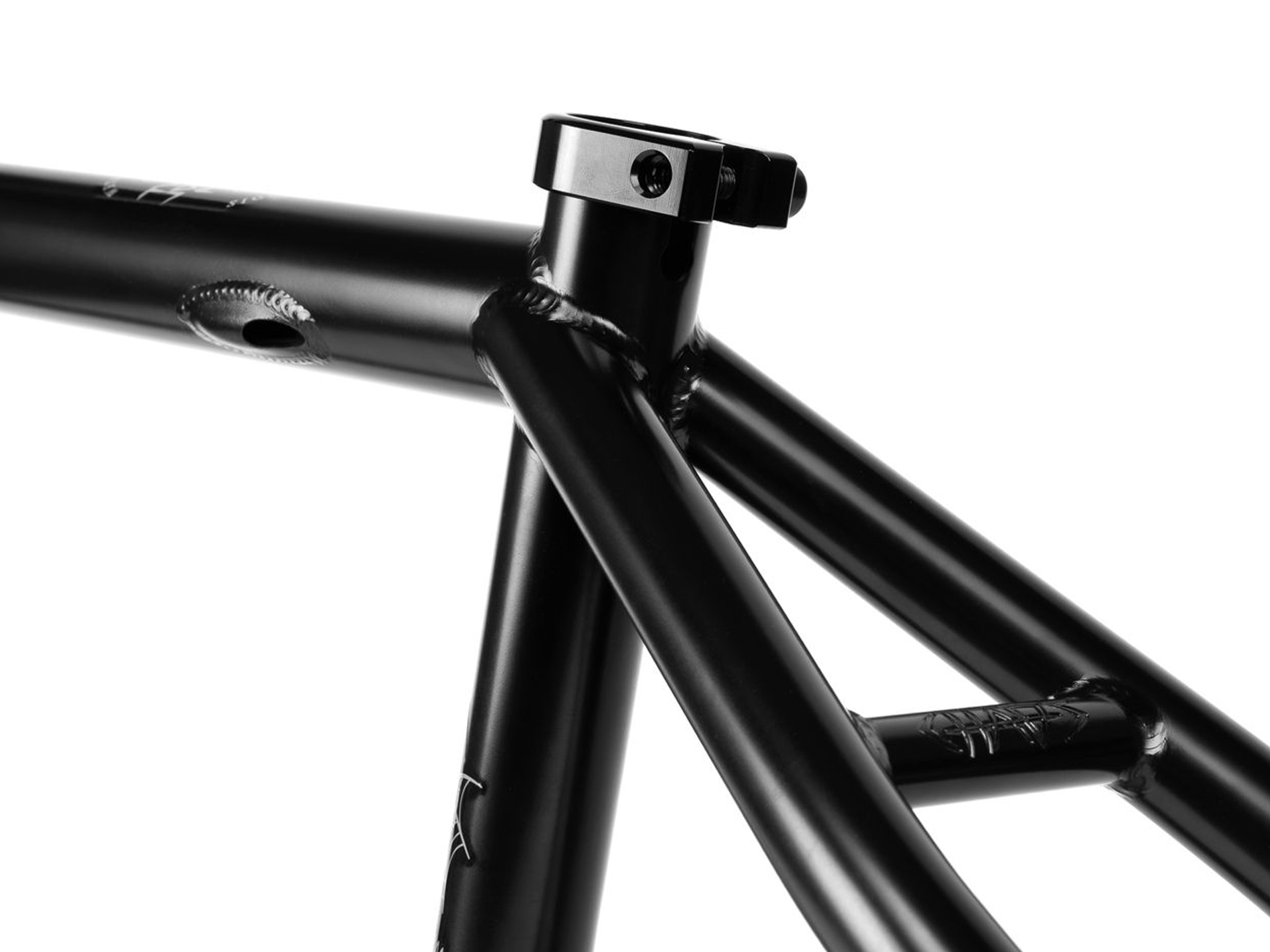

• Investment cast seat clamp
• Wider rear triangle allows clearance for a 2.4" tire
• WTP top tube and down tube gusset
• Includes LIFETIME GUARANTEE
