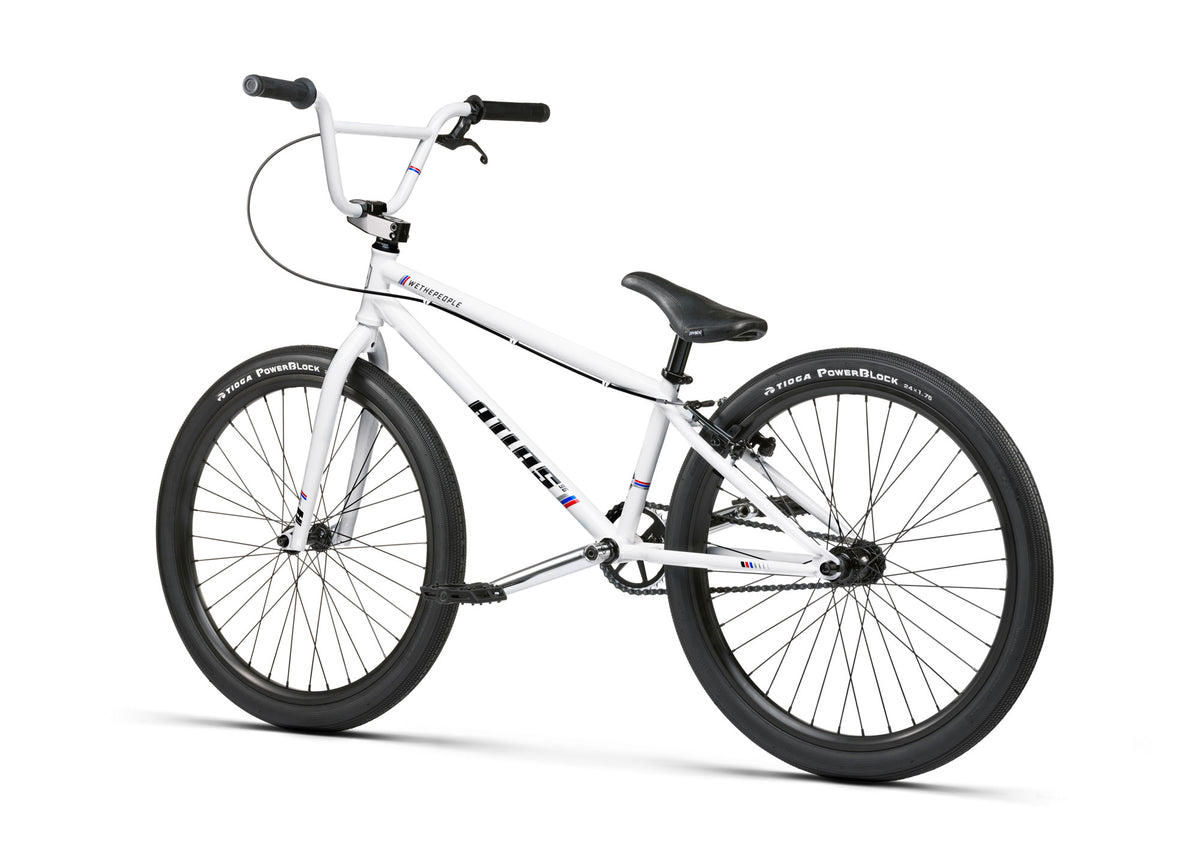

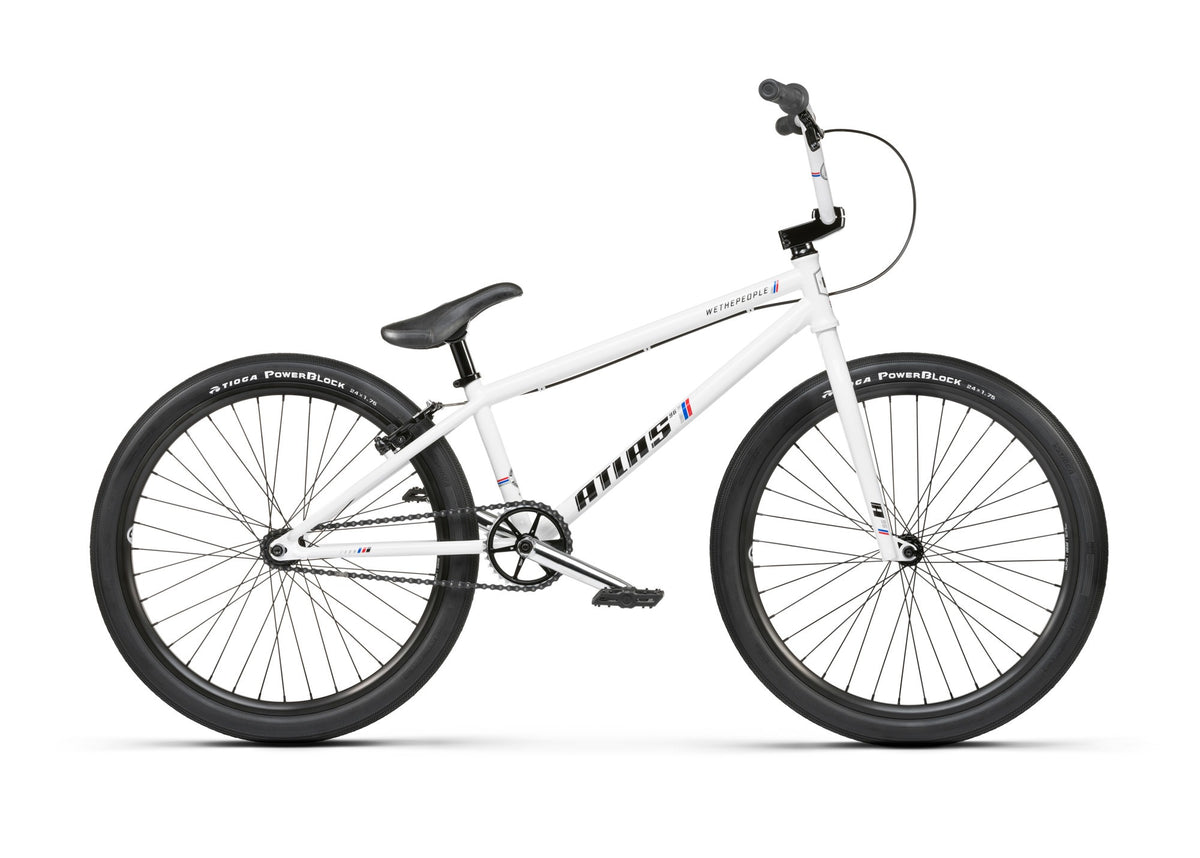

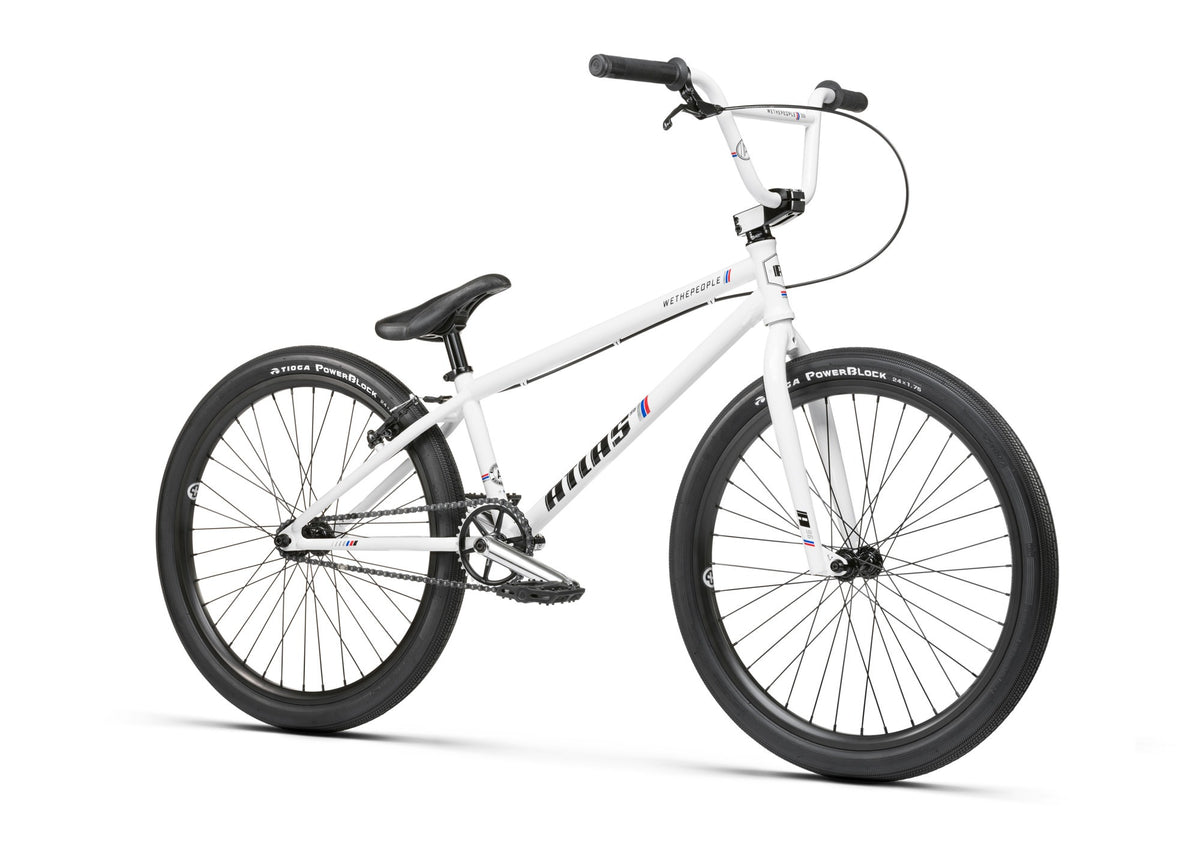

WeThePeople 24" The Atlas BMX Bike

WeThePeople
24" The Atlas BMX Bike

A Bike With A Larger Following That We’d Ever Anticipated, The Atlas Is The Perfect Bike For Those Times When Bigger Is Better. Our 24” Wheeled Bmx Features A Throwback To Our Racing Ancestry. The Glossy White Finish Is Completed With Race Inspired Geometry, A V-brake And Even A Wethepeople Patrol Stem And 33t Sprocket, Allowing You To Really Put Your Foot Down And Get Your Sprint On. Whether You’re Down The Trails, At The Pump Track Or Just Heading Into The City, The Atlas Is So Much Fun To Ride, You’ll Have Hard Time Putting It Down.

Specification

  • Frame: Wethepeople "Atlas" Frame, 4130 Full Crmo Race Inspired Frame, Tapered Cs & Ss
  • Fork: Wethepeople "Atlas" Fork, Butted Crmo Tubing, Cnc Steerer
  • Bars: Wethepeople "Atlas" Bar, 4130 Full Crmo
  • Grips: Salt "Ex" Grips, 155mm, With Flange

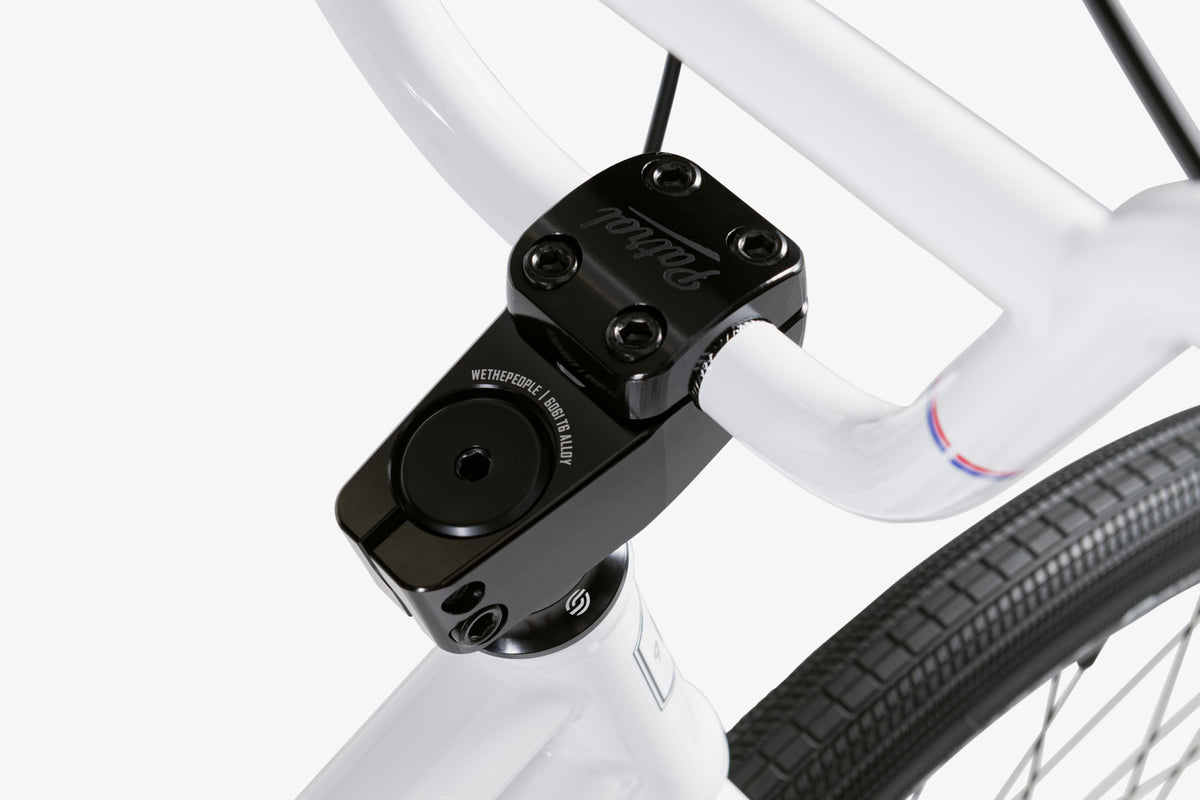

  • Stem: Wethepeople "Patrol" Topload Stem, Cnc Alloy, 28mm Rise, 53mm Reach
  • Headset: Salt "Pro" Int. Headset, Sealed Bearing
  • Gyro: -
  • Lever: Salt "Atlas" V-brake Lever, Alloy

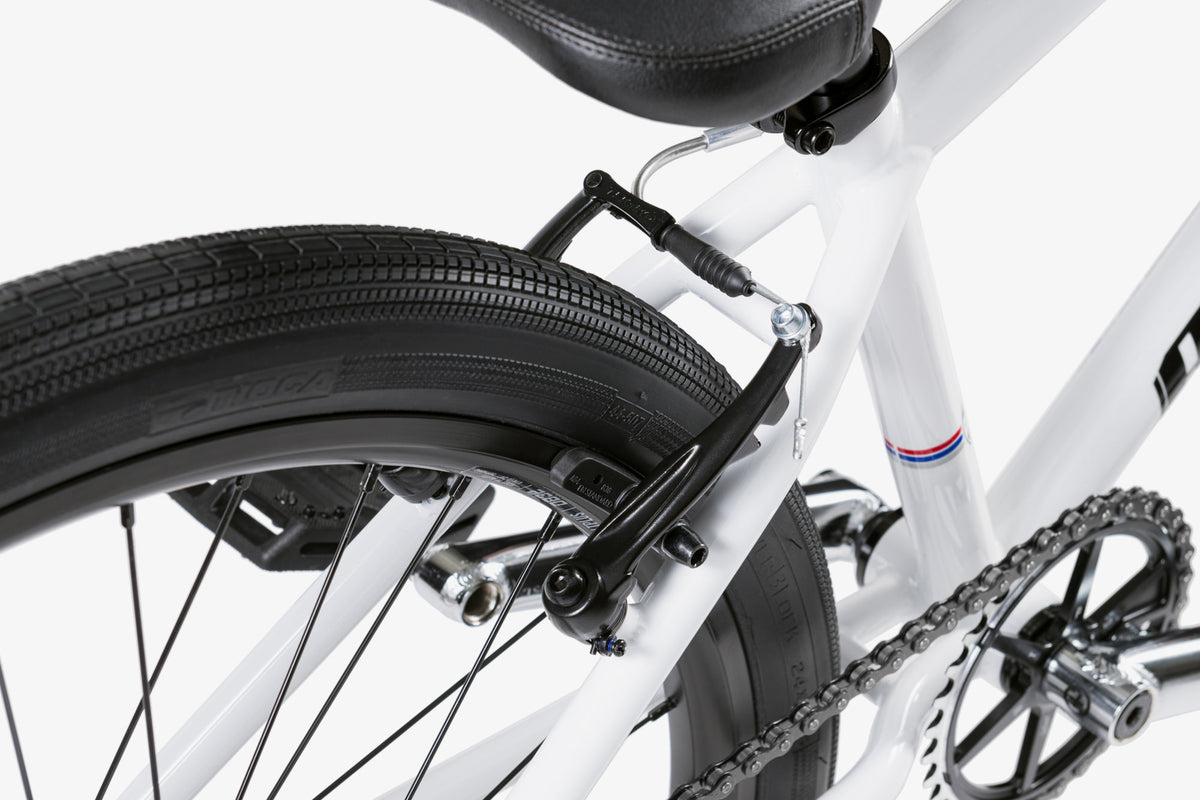

  • Brakes: Salt "Atlas" V-brake, Alloy

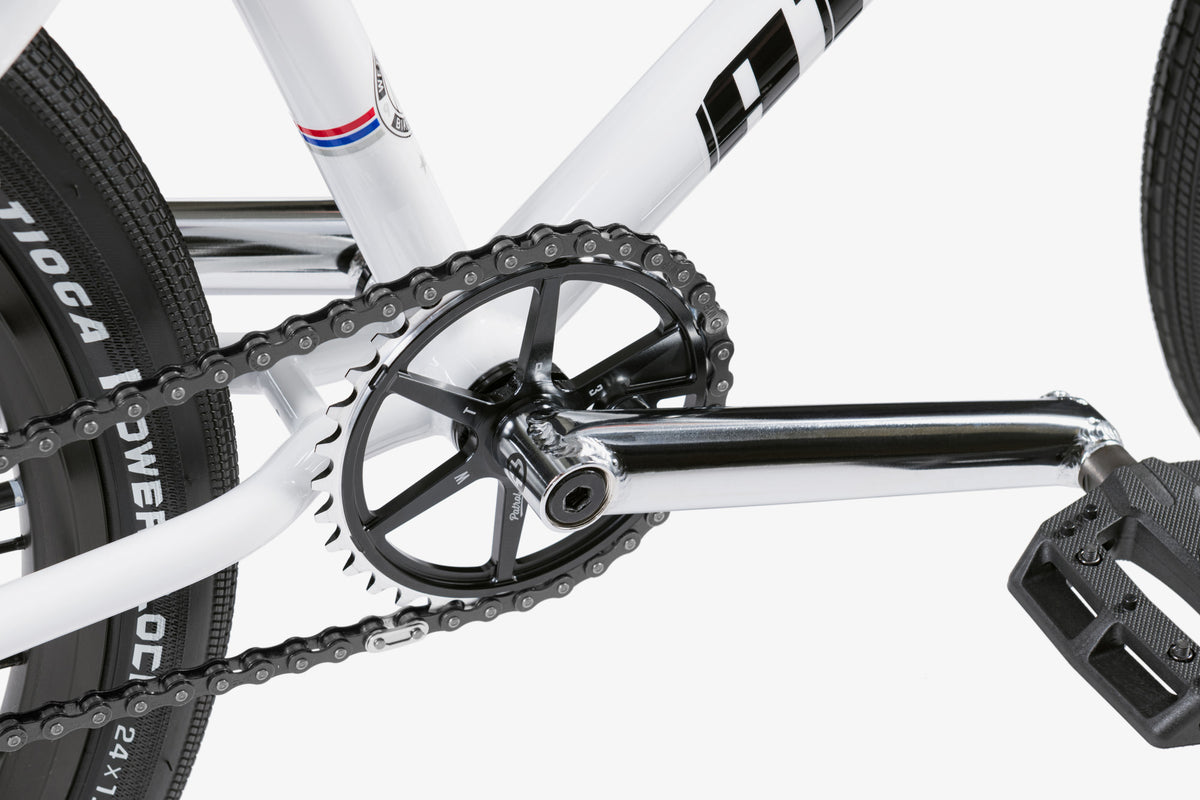

  • Cranks: Saltplus "Pro48" Tubular 3pc Crank, Crmo, 175mm, 48 Spline
  • Bb: Saltplus "Euro" Bb, 19mm, Euro Threaded, Sealed Bearing

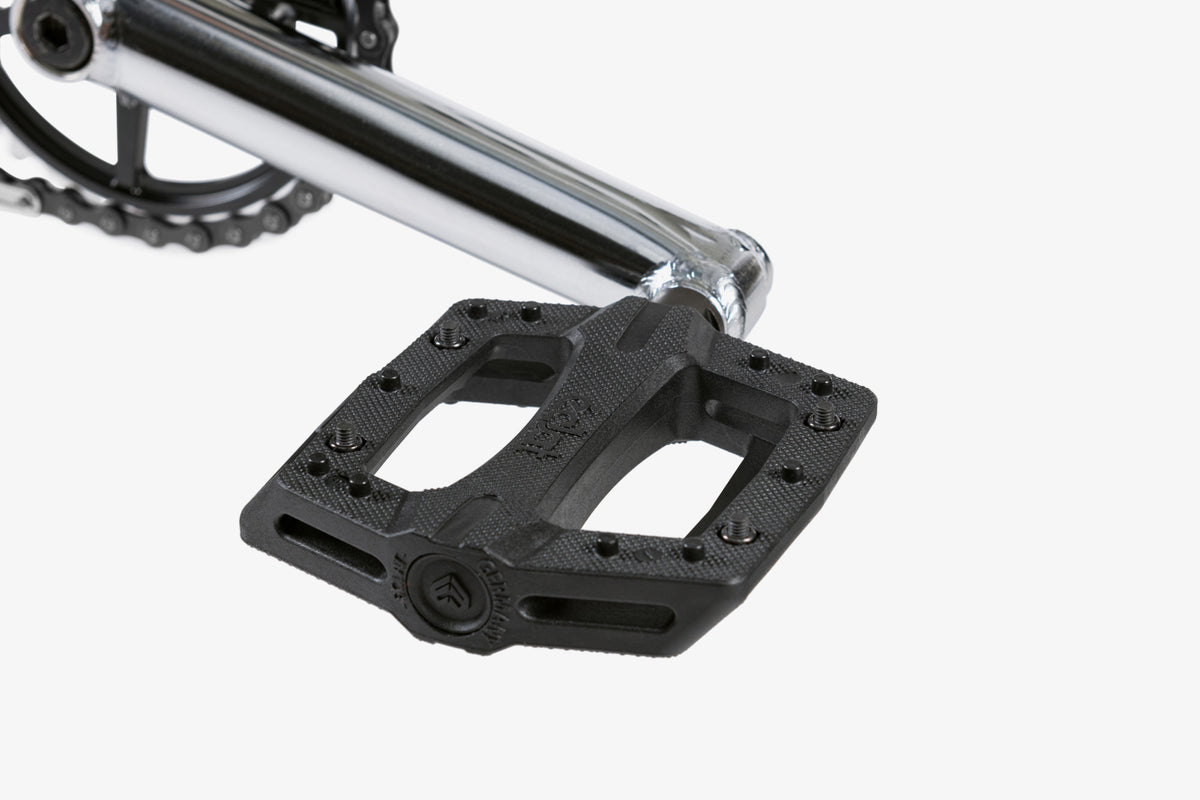

  • Pedals: Éclat "Contra" Pedals, Nylon/fiberglass
  • Chain: Wethepeople "Supply" Chain, Z510hx Type
  • Sprocket: Wethepeople "Patrol" Sprocket, Cnc, 6061-t6 Alloy, 33t
  • Driver: Cassette Driver, 14t Cog, Sealed Bearing

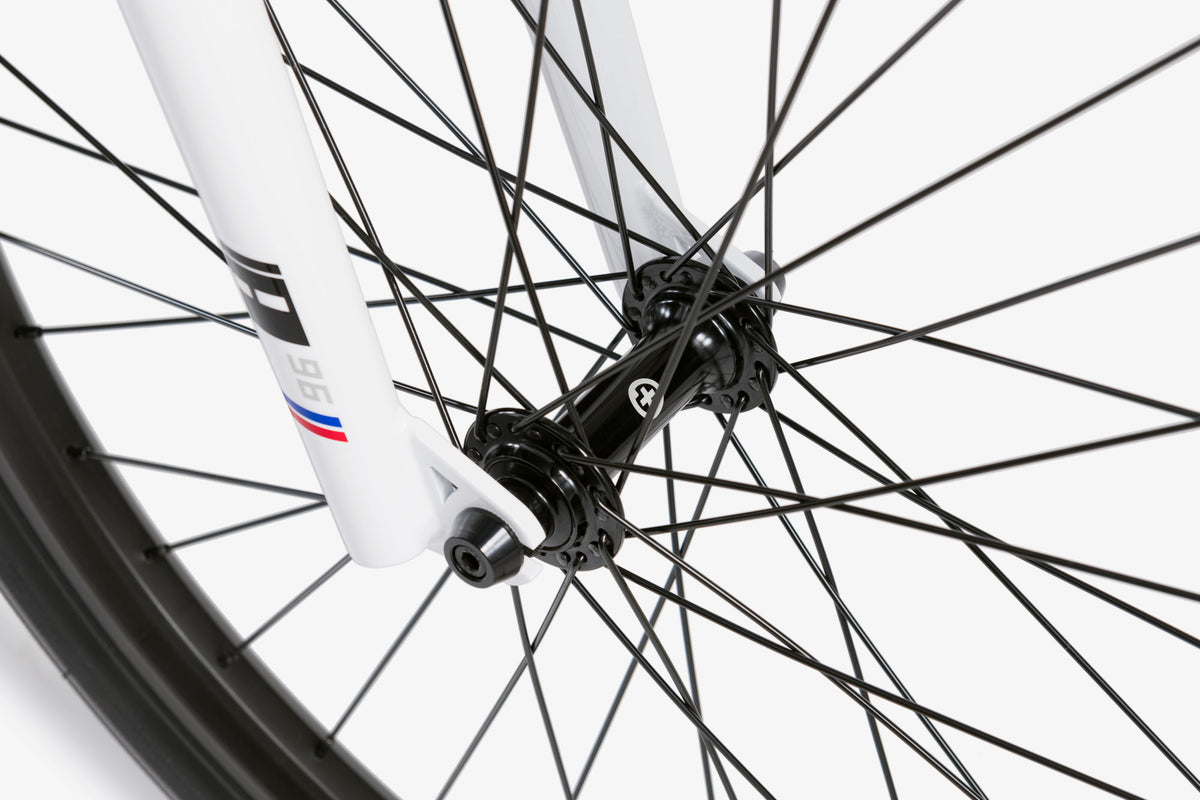

  • Front Hub: Saltplus "Pro" Hub, Fully Sealed, M6 Female Bolts, 36h

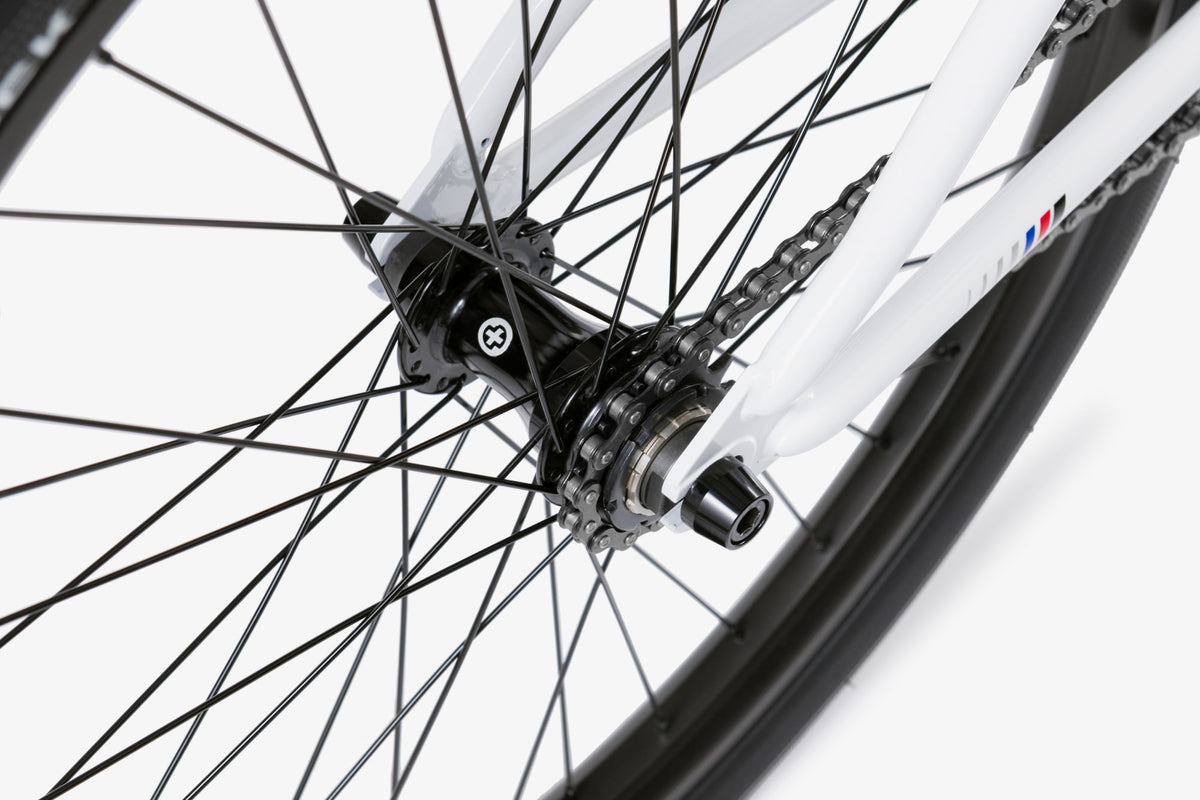

  • Rear Hub: Saltplus "Pro" Cassette Hub, Fully Sealed, M6 Female Bolts, 36h
  • Hubguards: -
  • Front Rim: Saltplus "Db32" Aero Rim, Double Wall, 36h
  • Rear Rim: Saltplus "Db32" Aero Rim, Double Wall, 36h

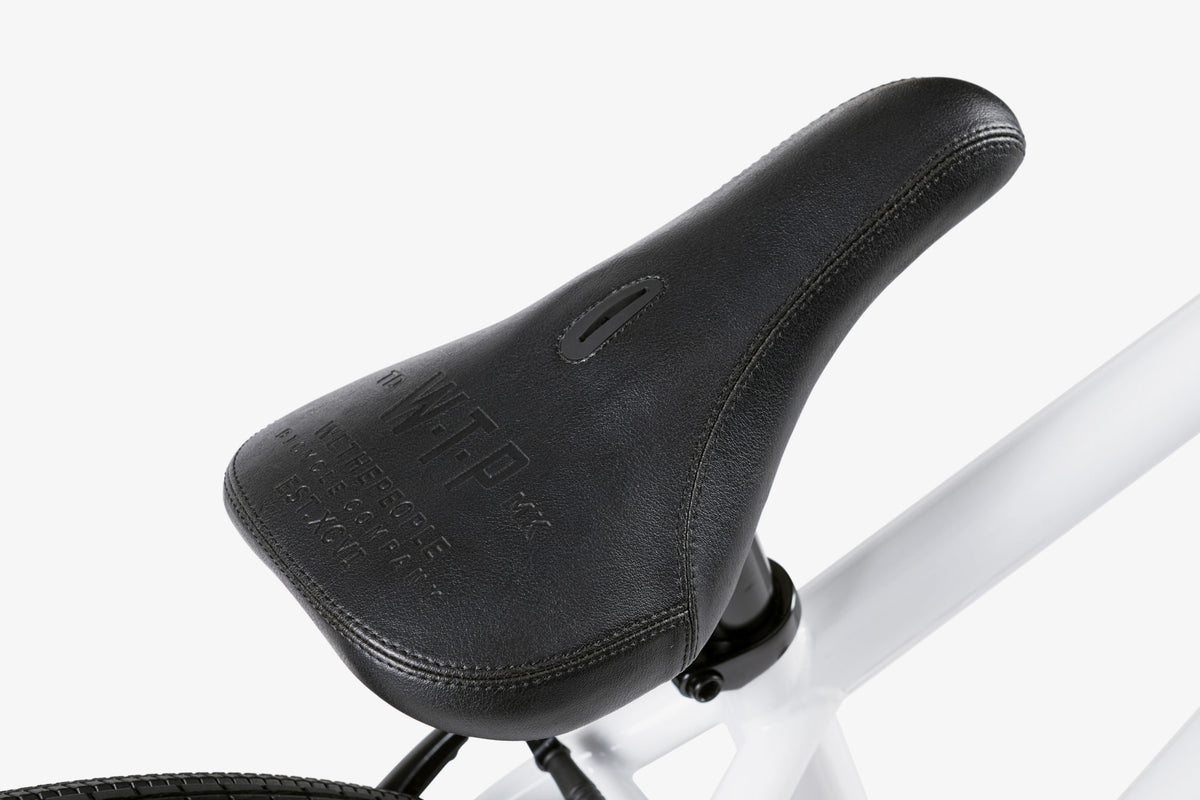

  • Seat: Éclat "Bios" Pivotal Seat, Slim Padded (Spec Subject To Change)
  • Seat Post: Salt "Am" Pivotal Seat Post, 27.2mm, Alloy
  • Seat Clamp: Salt "Pro" Seat Clamp, Alloy
  • Tires: Tioga "Power Block" Tires, 1.75", Front & Rear
  • Pegs: -
  • Weight: 12.27kg / 27.06lbs
  • Colors: White/-/


Geometry

Frame

  • A - Top Tube Length: 21.75"
  • B - Chain Stay Length: 15"
  • C - Head Tube Angle: 74°
  • D - Seat Tube Angle: 72.25°
  • E - Bb Height: 12.25"
  • F - Standover Height: 9.5"


Handle Bar

  • G - Bar Rise: 7.1"
  • H - Bar Width: 28"
  • I - Bar Back Sweep: 12°
  • J - Bar Up Sweep: 3°
