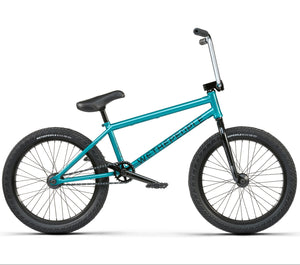

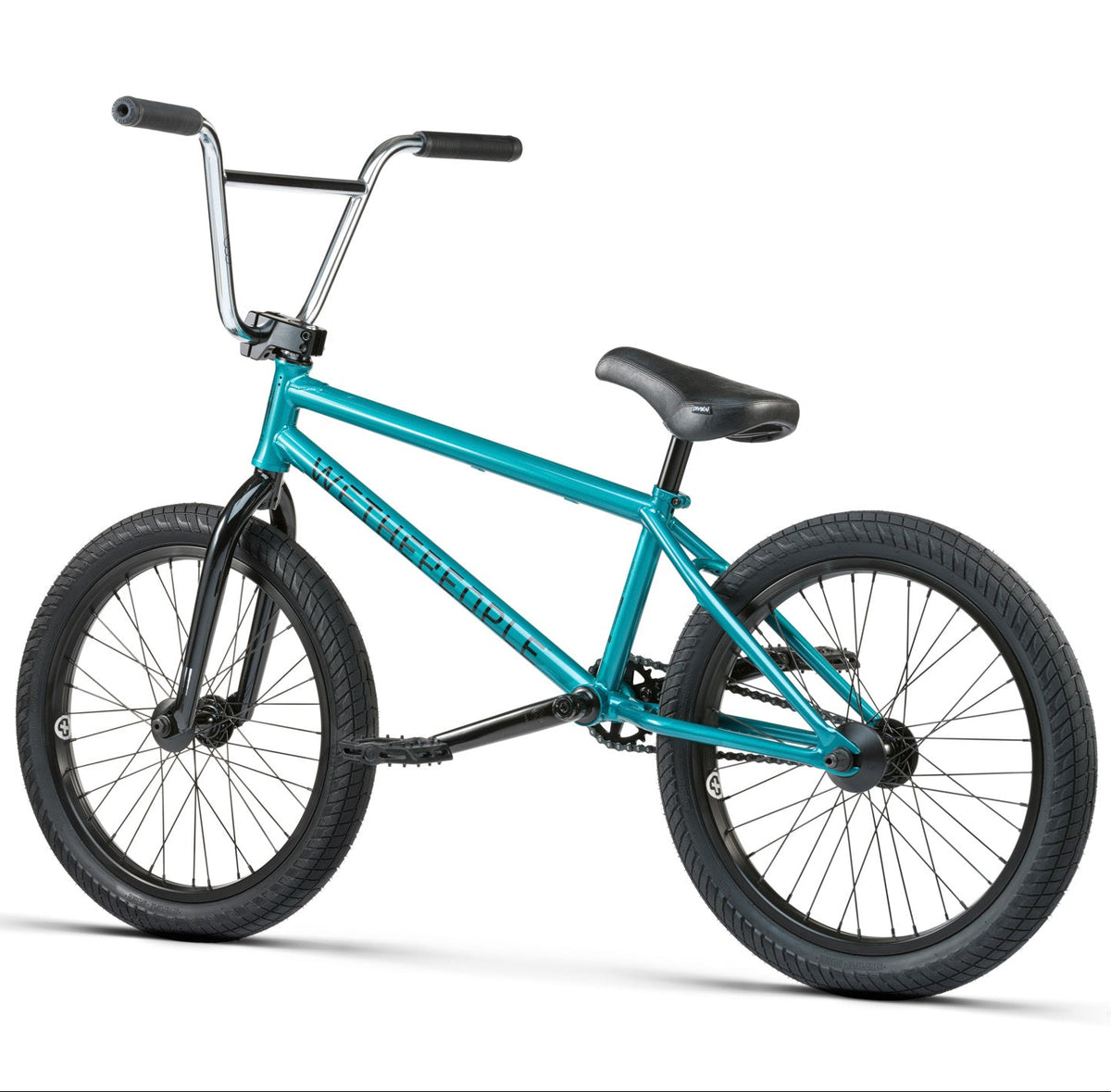

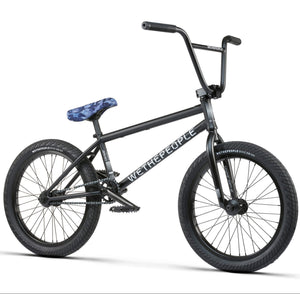

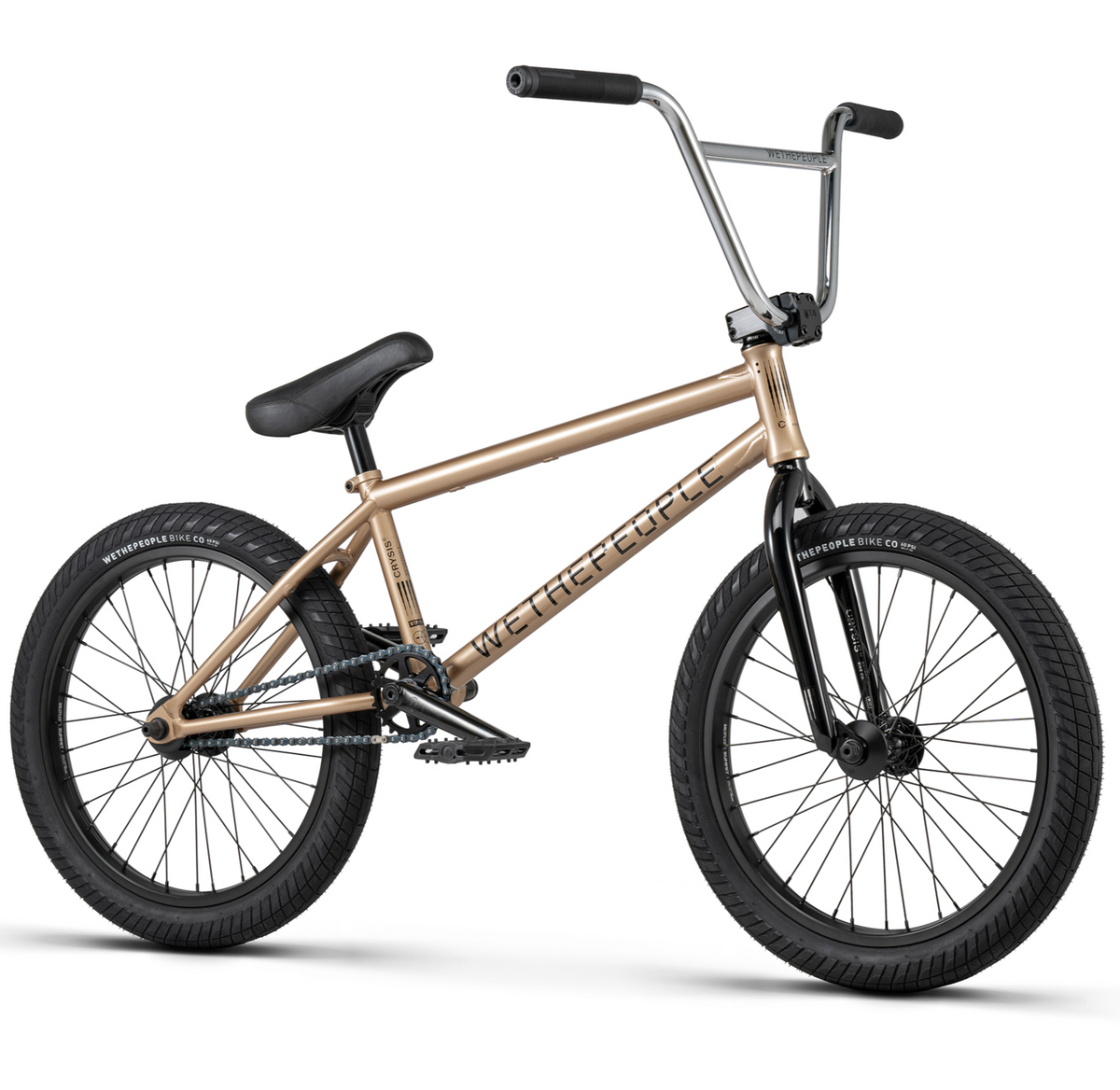

WeThePeople 20" Crysis BMX Bike

WeThePeople
20" Crysis BMX Bike

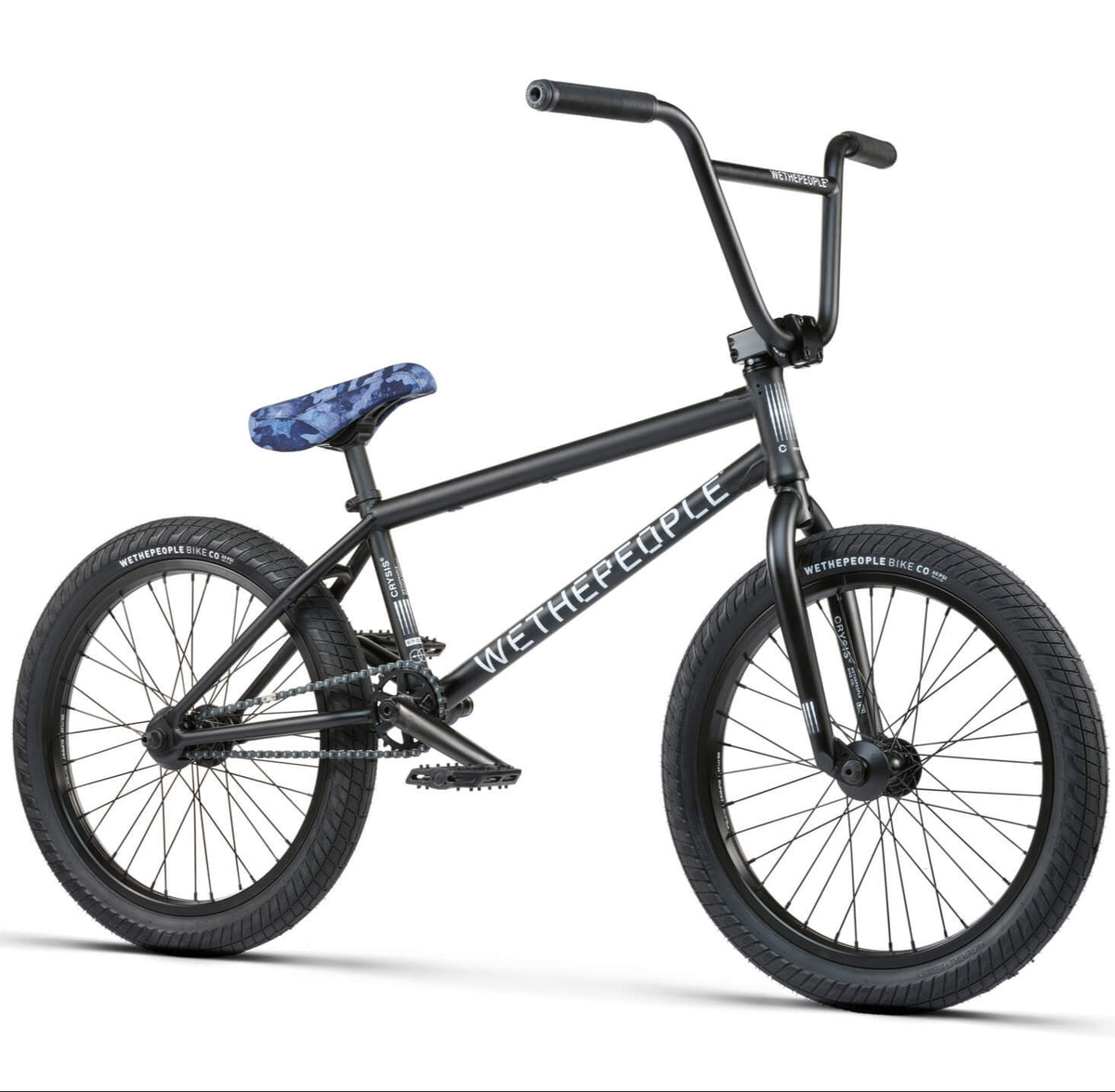

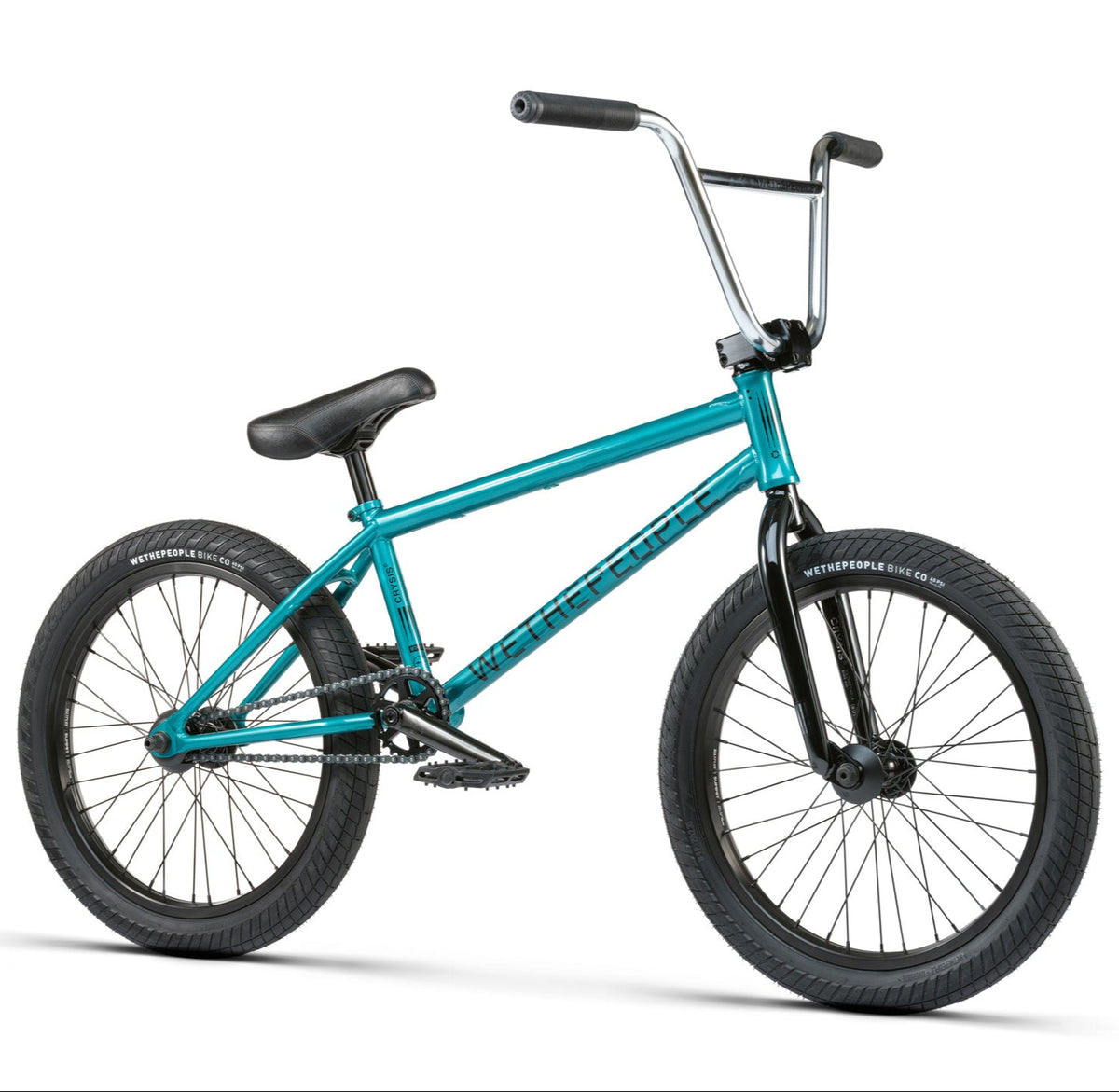

Built Upon A Frame Which Most Other Aftermarket Frames Would Be Even Envious Of, The Crysis Is Wrapped In A Generous Helping Of Wethepeople Parts Including The All-terrain 2.35” Overbite Tires, Logic Sprocket And The Logic Front Load Stem. The Crysis Is Available In 20.5” Or 21” Toptube Sizes, Both Are Using Our Invest Cast Wishbone And Taller 127mm Head Tube For A Super Clean And Refined Look.

Specification

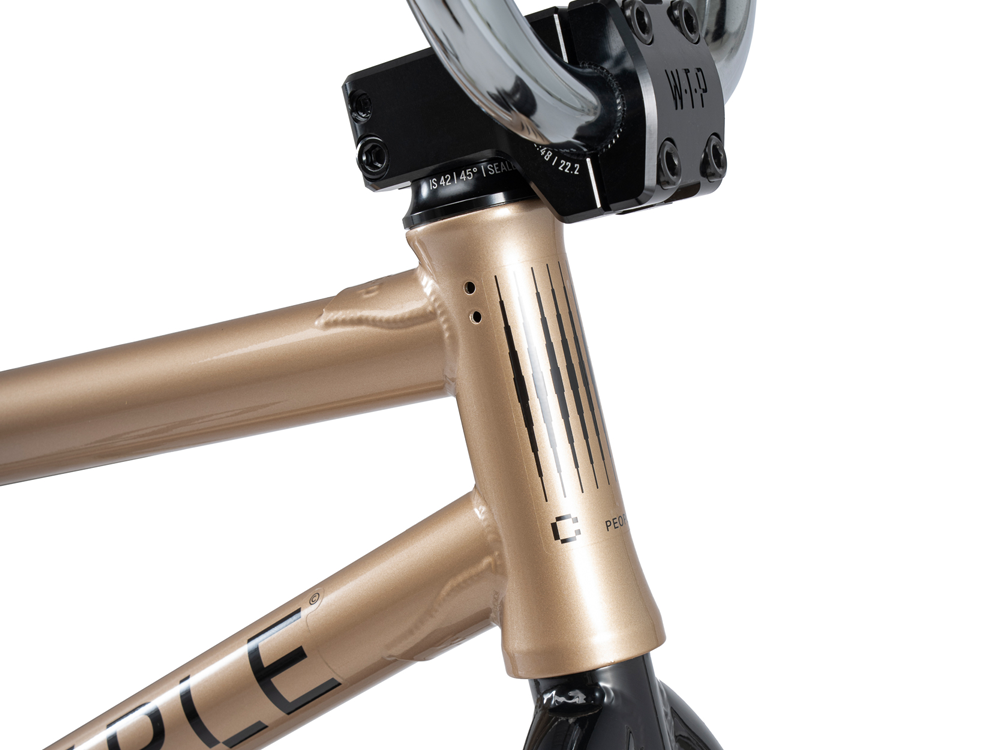

• Frame: Wethepeople "Crysis" Frame, 4130 Full Crmo, Tapered Ss & Cs, With Removable Brake Pivots & Guides, 127mm Head Tube
• Fork: Saltplus "Crysis" Fork, 4130 Full Crmo, 4130 Crmo Steerer, 26mm Offset
• Bars: Saltplus "Crysis" Bar, 2pc, 4130 Full Crmo

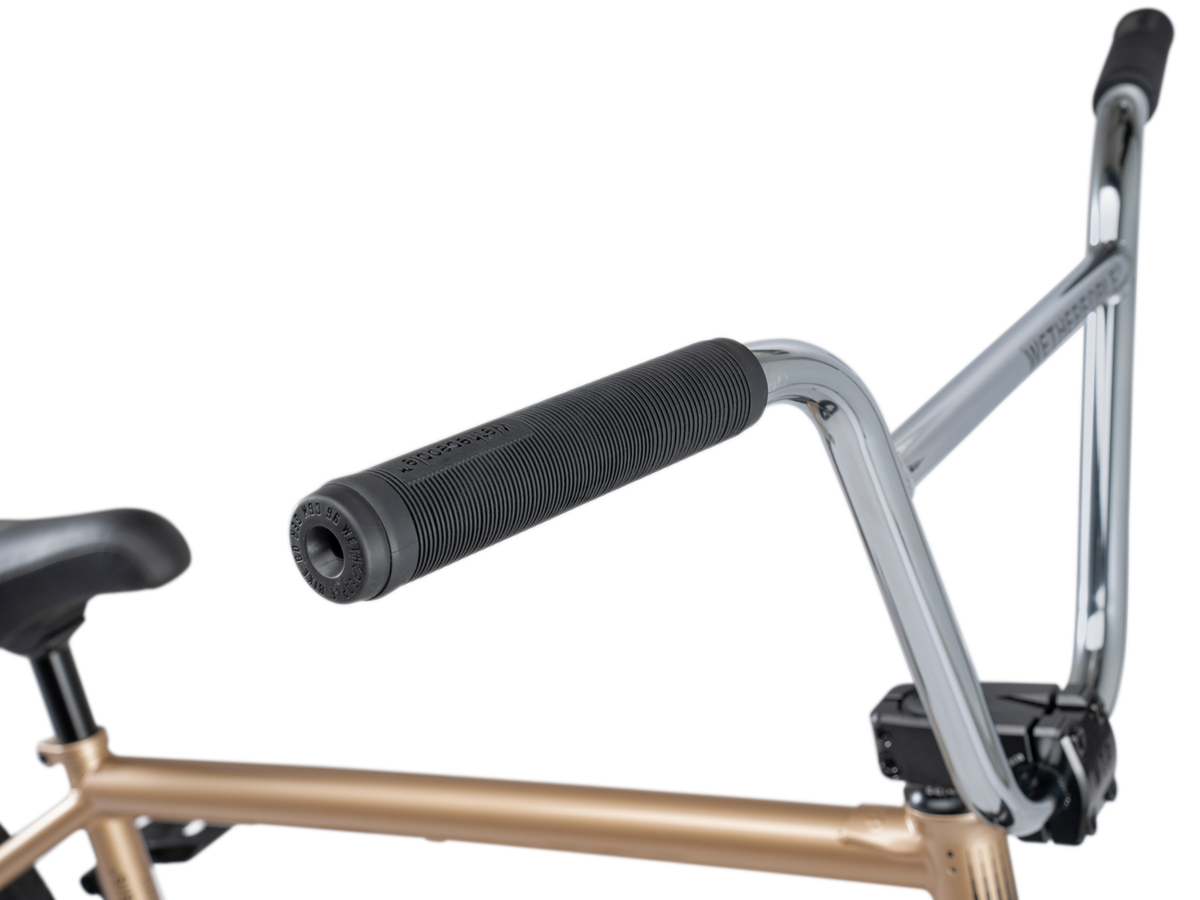

• Grips: Wethepeople "Perfect" Grips, 165mm, Flangeless

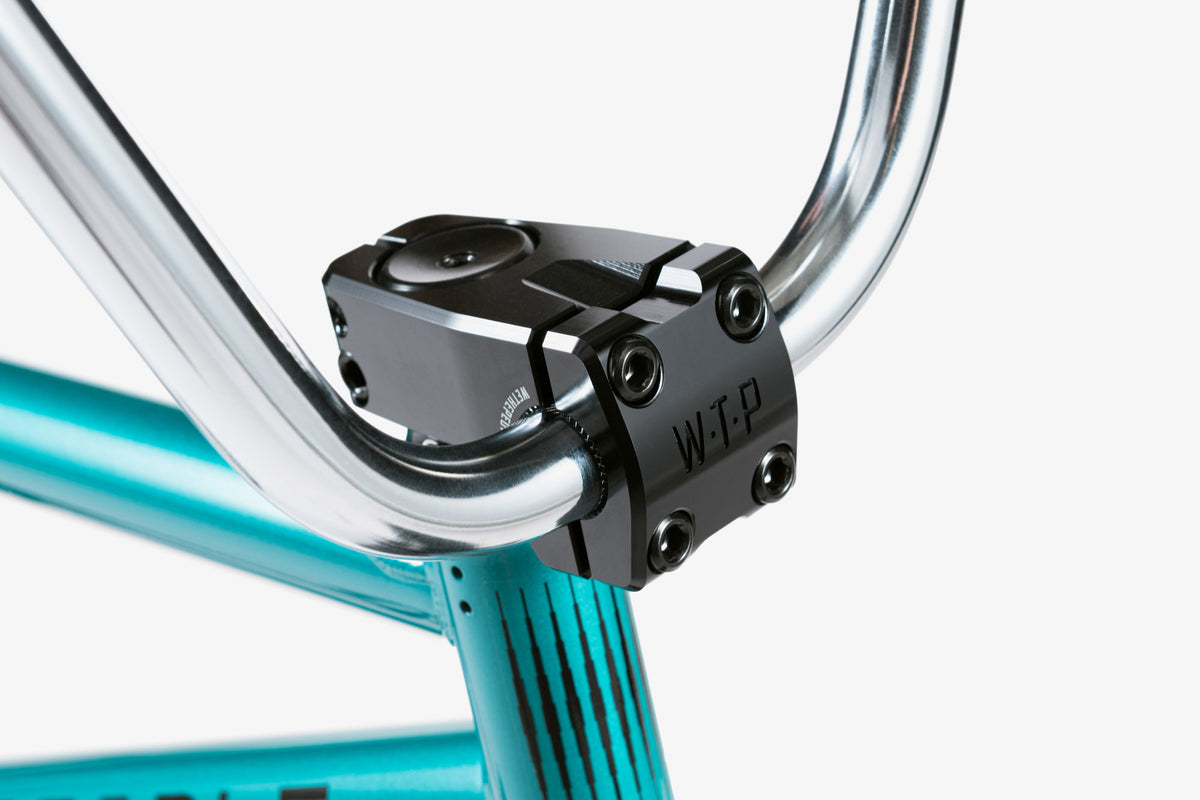

• Stem: Wethepeople "Logic" Frontload Stem, Full Cnc, 48mm Reach
• Headset: Salt "Pro" Int. Headset, Sealed Bearing
• Gyro: Holes For Removable Gyro Tabs
• Lever: Salt "Moto" Brake Lever, Alloy
• Brakes: Eclat “talon” Alloy U-brake Rear
• Cranks: Saltplus "Ultra" Square Profile 3pc "Tss" Crank, Crmo, 170mm, 8 Spline
• Bb: Salt "Mid" Bb, 19mm, Press Fit, Sealed Bearing

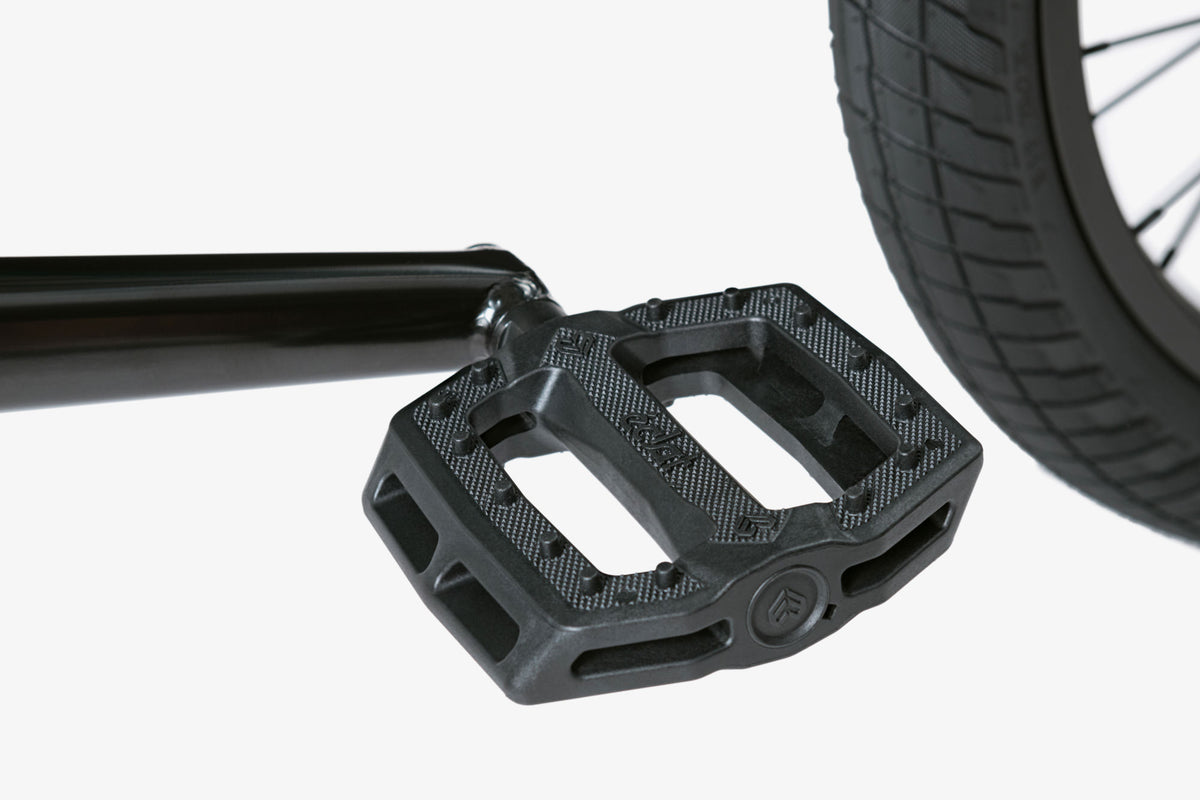

• Pedals: Éclat "Slash" Pedals, Nylon/fiberglass
• Chain: Wethepeople "Supply" Chain, Z510hx Type

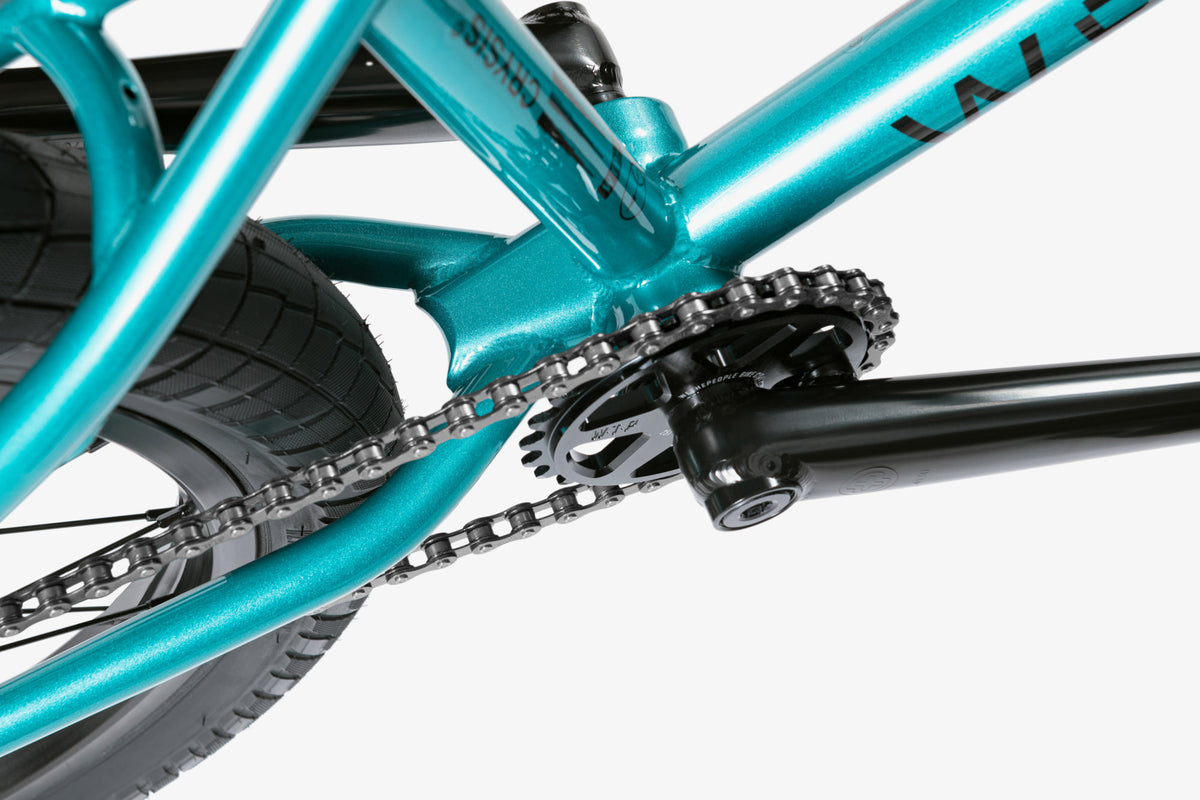

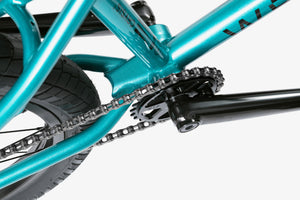

• Sprocket: Wethepeople "Logic" Sprocket, Cnc, 6061-t6 Alloy, 25t
• Driver: 1pc Cassette Driver, 9t, Sealed Bearing

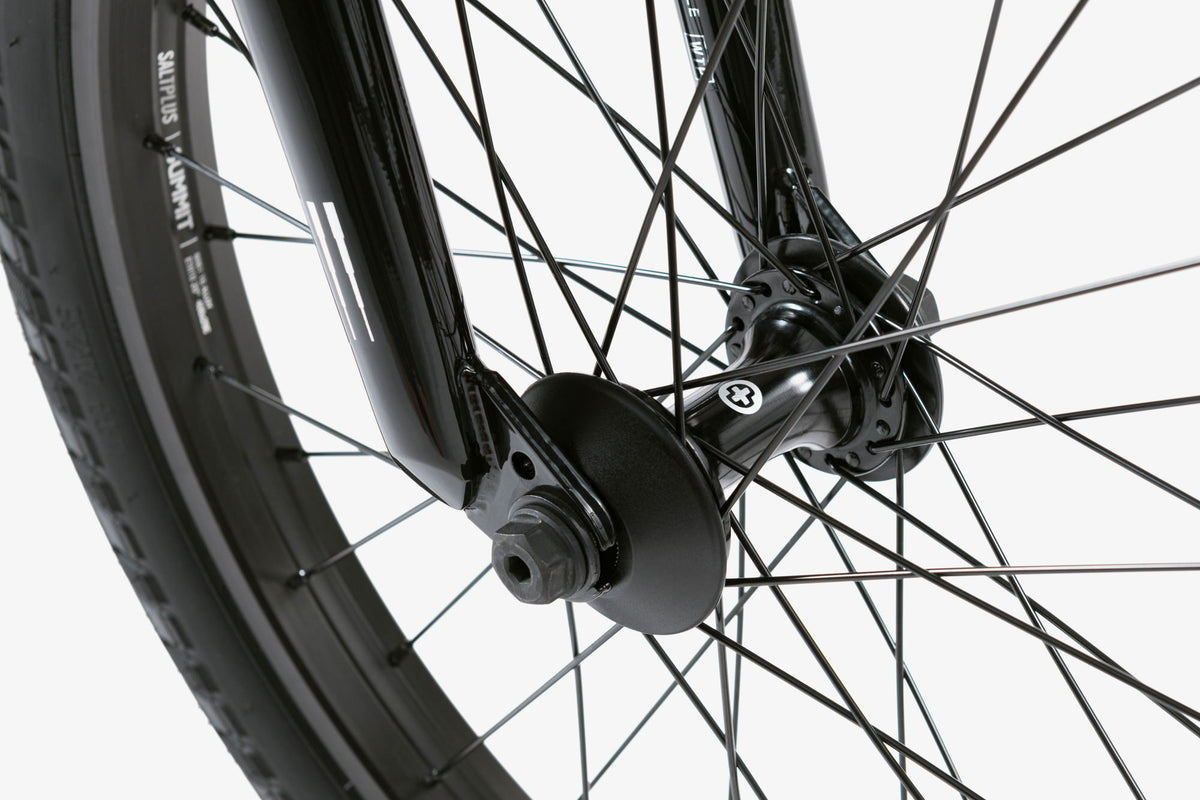

• Front Hub: Saltplus "Pro" Hub, Fully Sealed, 3/8"S Female Bolts, 36h

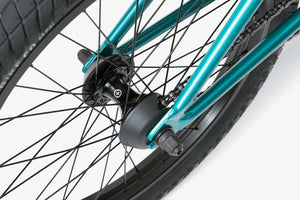

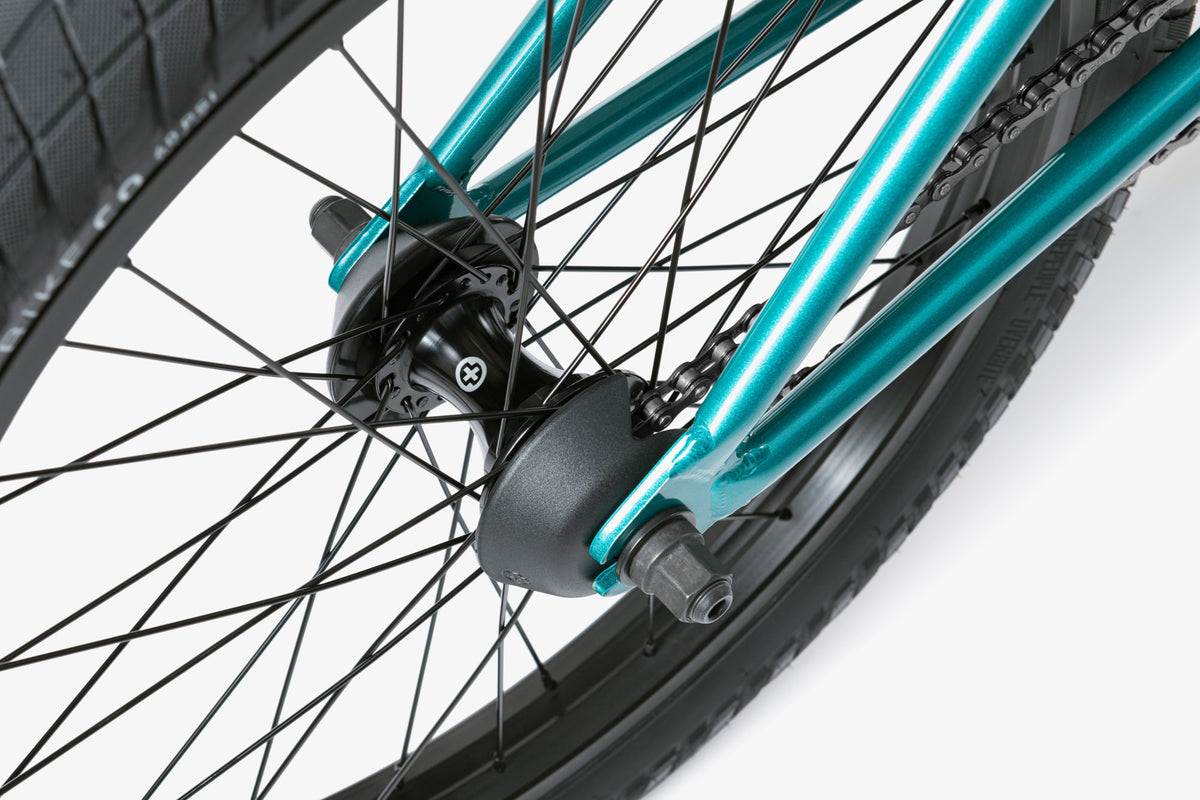

• Rear Hub: Saltplus "Pro" Cassette Hub, Fully Sealed, 9t, 14mm Axle, 36h
• Hubguards: Saltplus "Pro" Hub Guards - Nylon/fiberglass Front (X2), Nylon/fiberglass Rear (X2)
• Front Rim: Saltplus "Summit" Rim, Double Wall, 36h
• Rear Rim: Saltplus "Summit" Rim, Double Wall, 36h

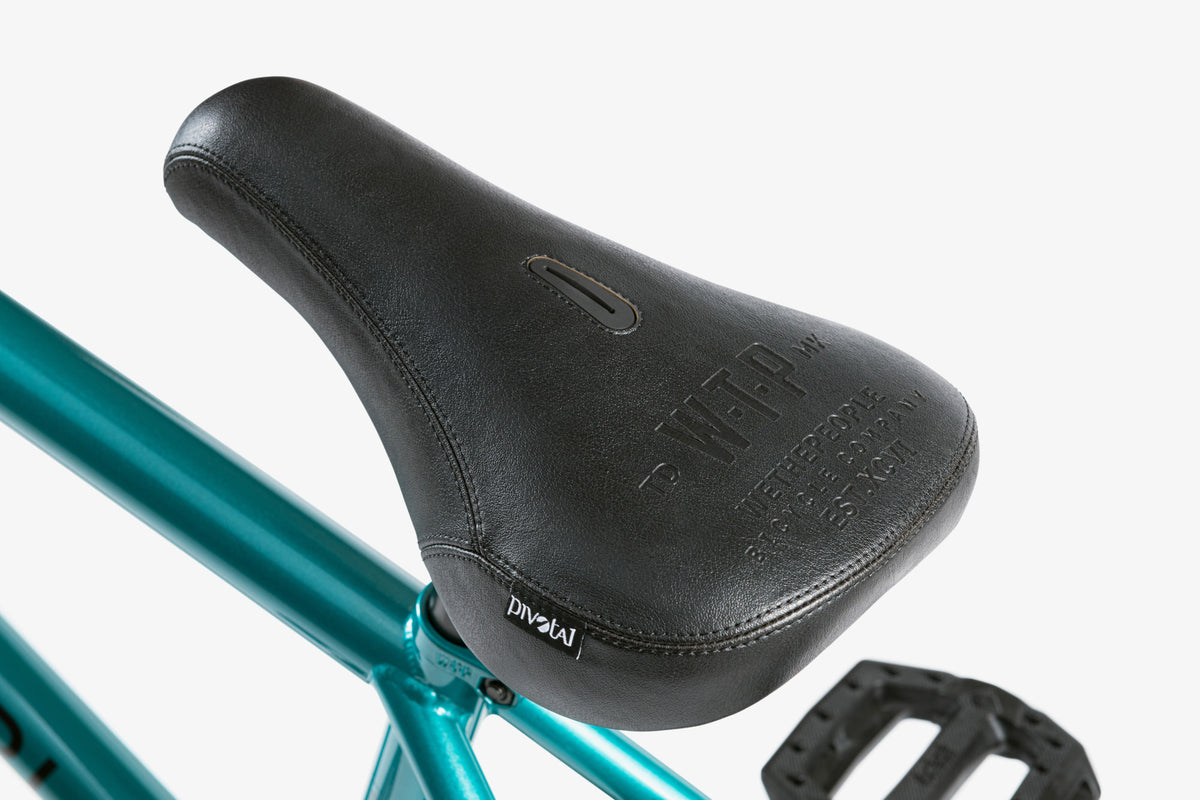

• Seat: Éclat "Bios" Pivotal Seat, Fat Padded (Spec Subject To Change)
• Seat Post: Salt "Am" Pivotal Seat Post, 150mm, Alloy
• Seat Clamp: Wethepeople "Logic" Seat Clamp, 4130 Crmo

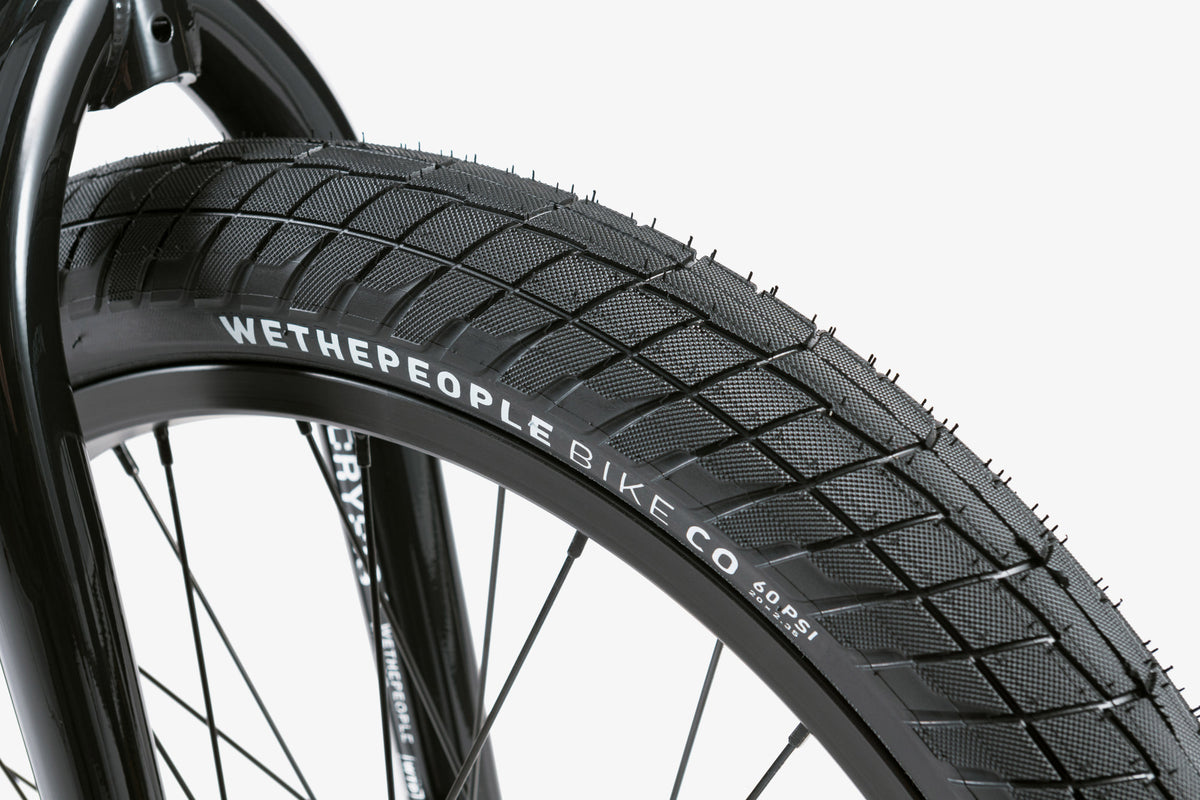

• Tires: Wethepeople "Overbite" Tires, 2.35", Front & Rear
• Pegs: -
• Weight: 12.09kg / 26.66lb
• Colors: Matt Black/Midnight Green/-

Geometry

• A - Top Tube Length: 20.5" | 21"
• B - Chain Stay Length: 13.2"
• C - Head Tube Angle: 75°
• D - Seat Tube Angle: 71°
• E - Bb Height: 11.65"
• F - Standover Height: 8.75" | 9"

Handle Bar

• G - Bar Rise: 9.7"
• H - Bar Width: 29.5"
• I - Bar Back Sweep: 12°
• J - Bar Up Sweep: 2.5°
