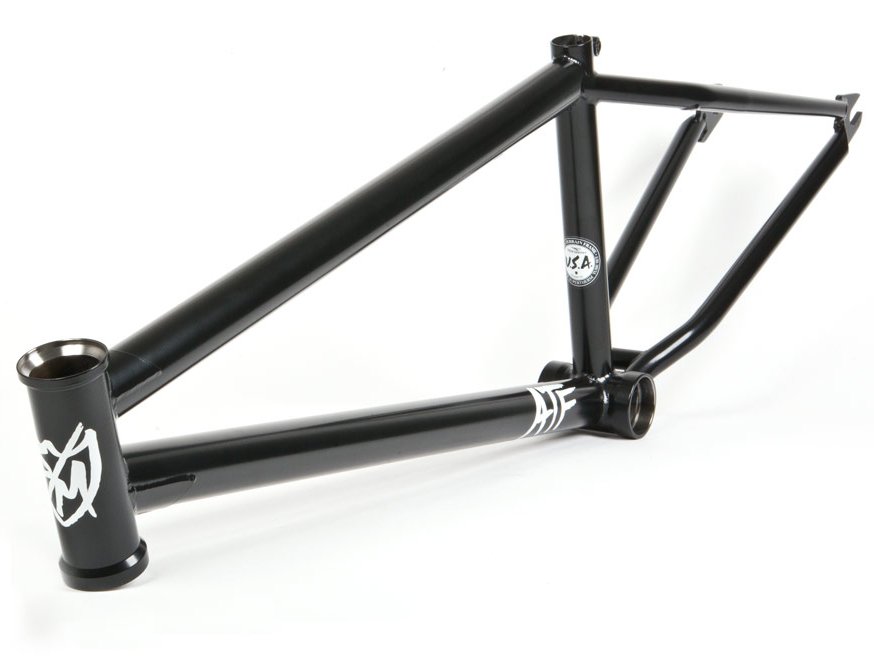

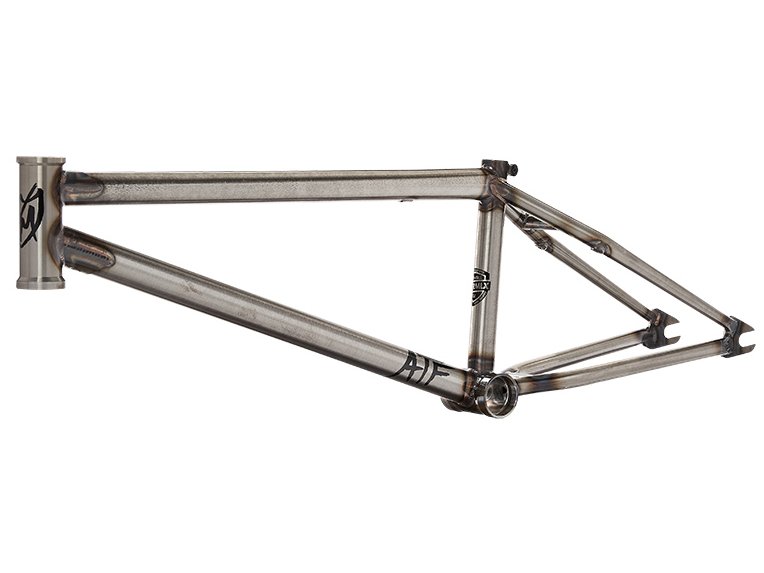

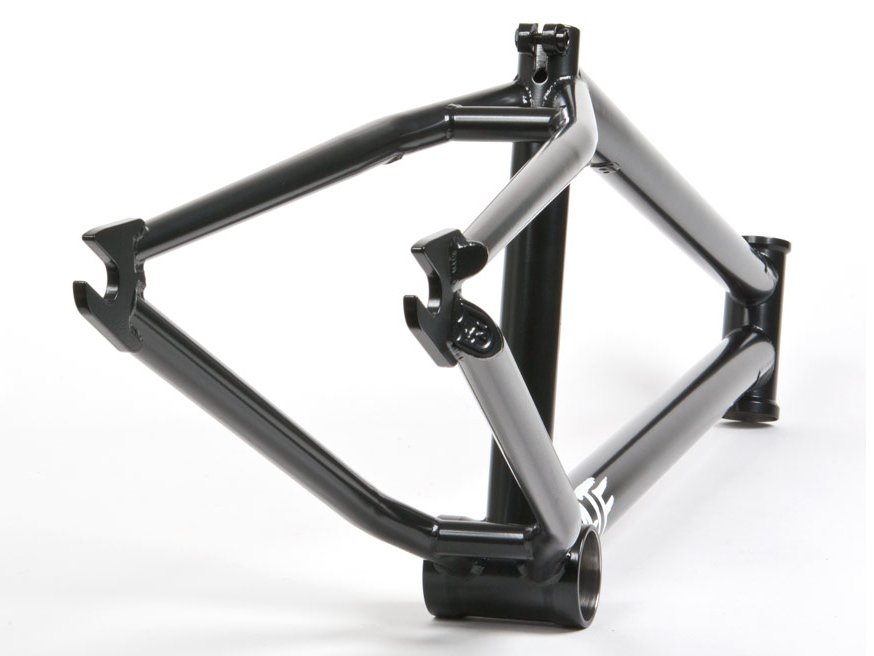

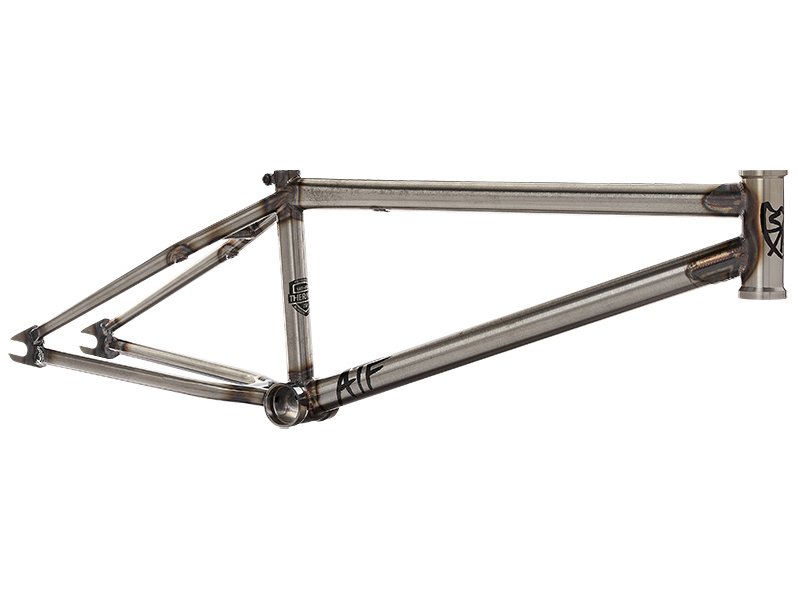

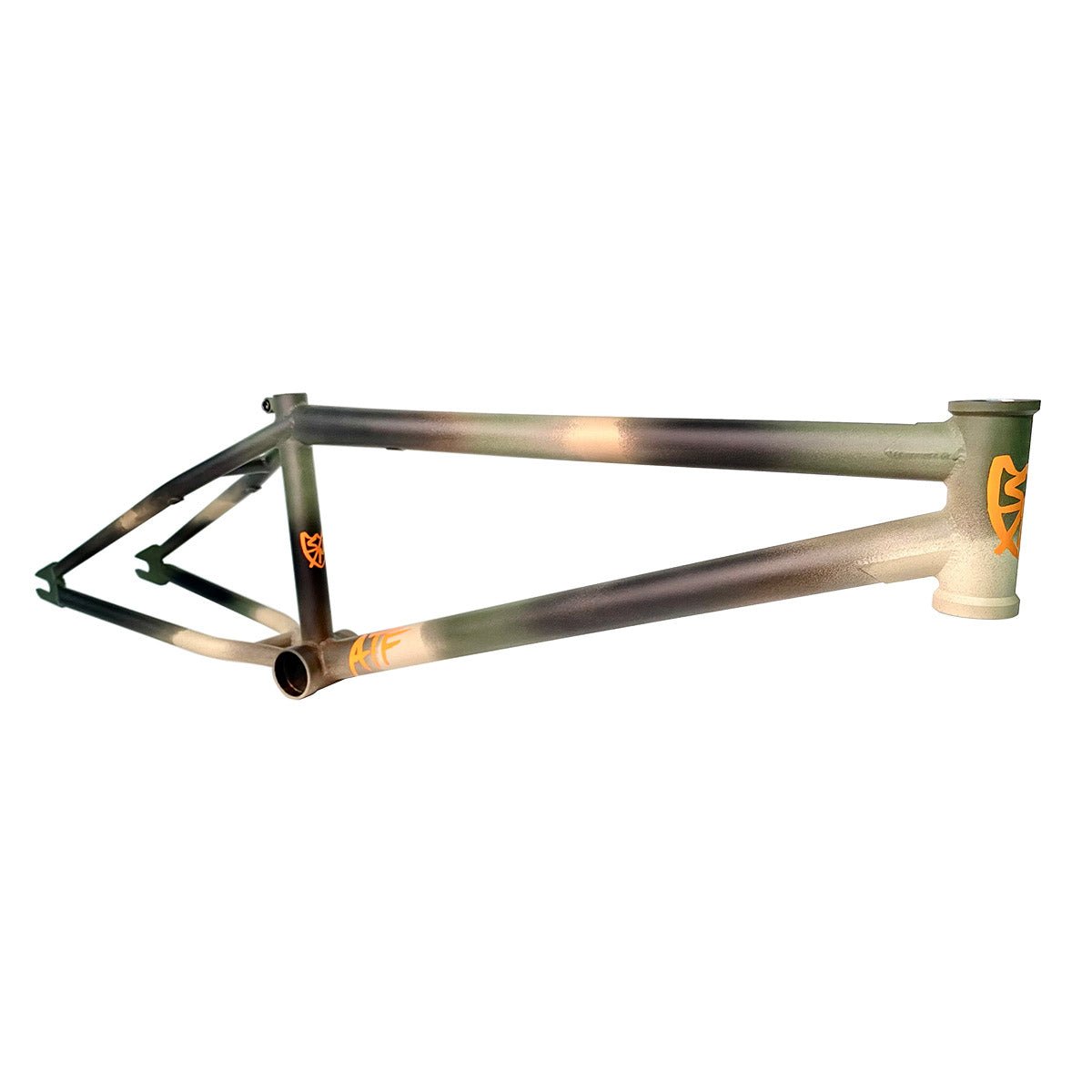

S&M ATF Frame - 22" Wheel

The 22 inch S&M Bikes ATF frame is one of the best 22 inch frames out there. S&M BMX quality means you're getting a well built, USA made frame to suit 22 inch wheels. The tall riders love the feel of a 22" BMX and it makes sense; a little more forgiving and a lot of bike to whip around.

Give the S&M ATF 22" frame a go at the trails or the big transition and you won't look back.

SPECS:

• Top tube length: 21.625" & 22.125"

• Rear end length: 14.1"
• Head tube angle: 74.25°
• Seat tube angle: 71°
• BB height: 12.25"
• Stand over height: 9"
• Mid BB
• 1" seat post size
• Integrated head tube (45°/45°, 41.8mm)
• Thread on brake mounts (sold separately)
• Integrated seat clamp
• 14mm dropout slots, 4Q Baked
• Weight: 2.4kg
• Butted Thermal-X Tubing
