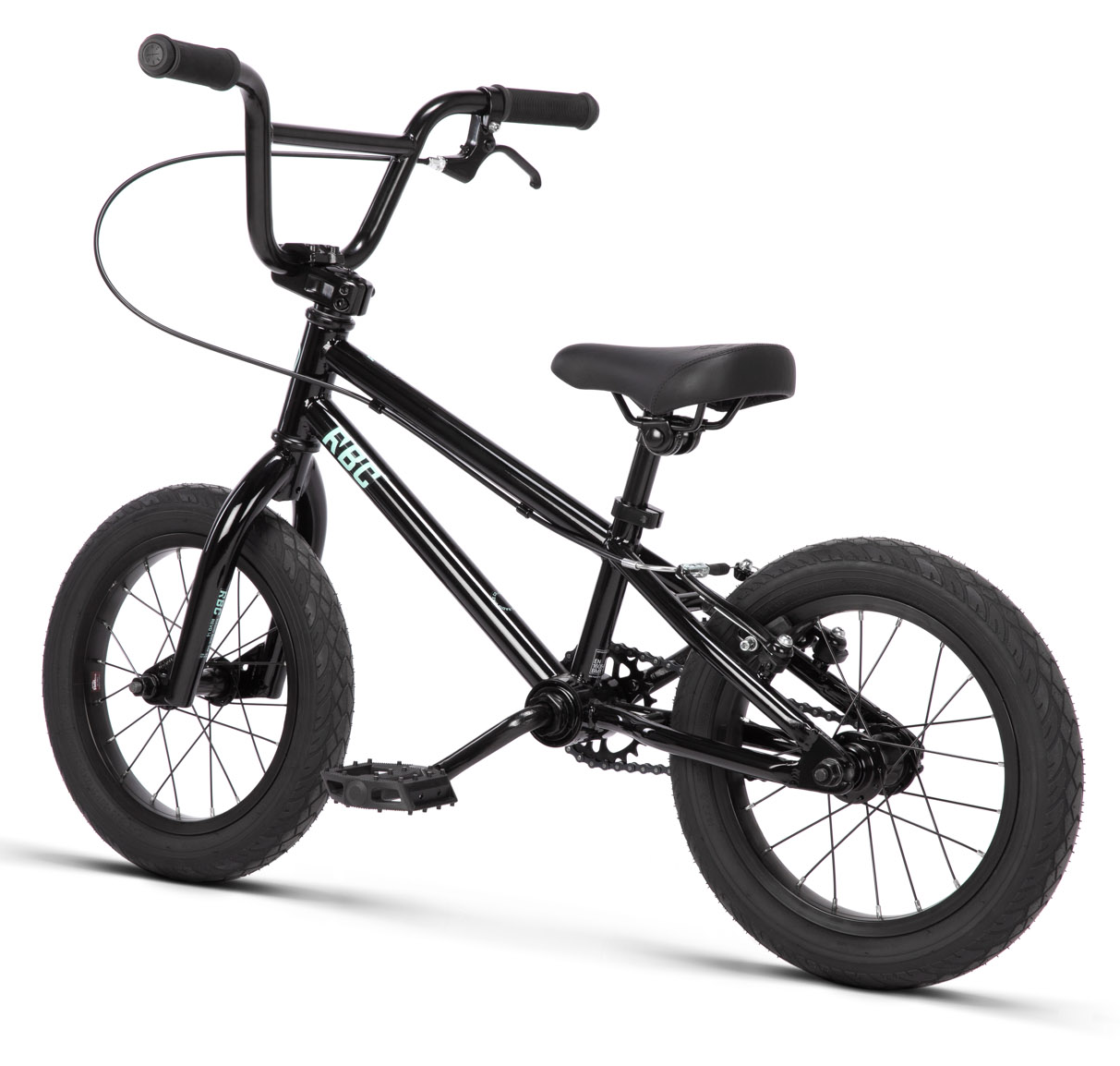

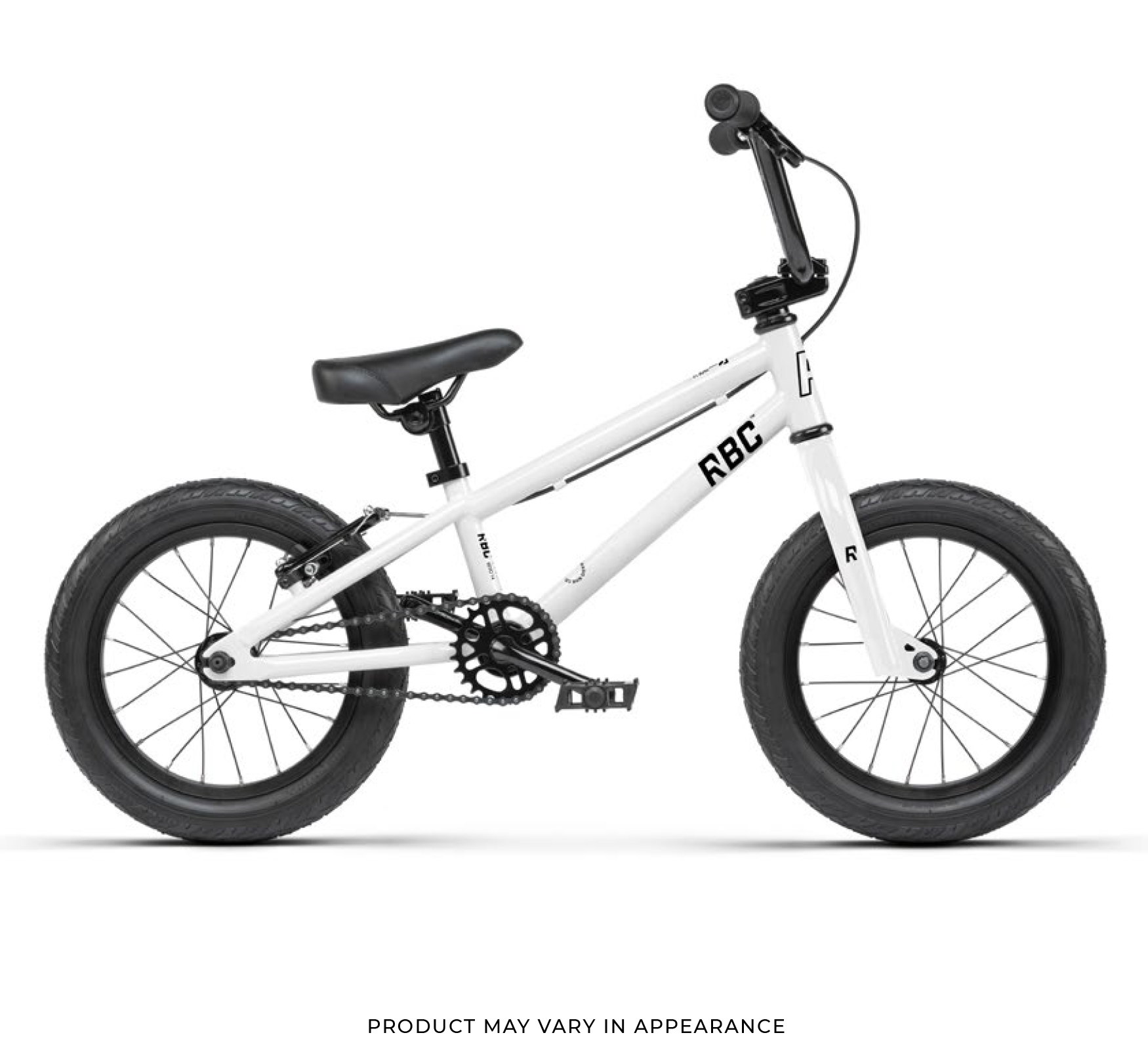

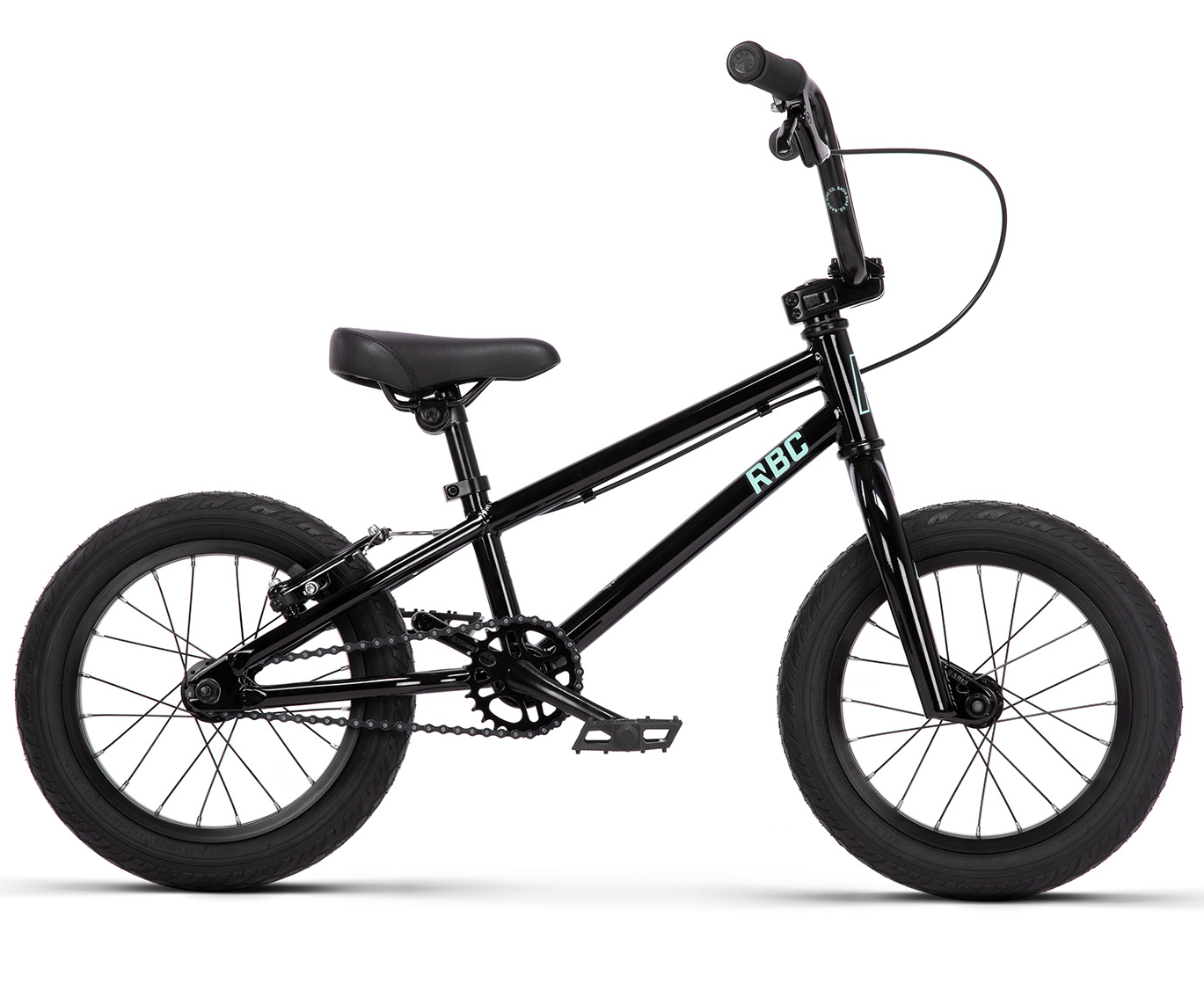

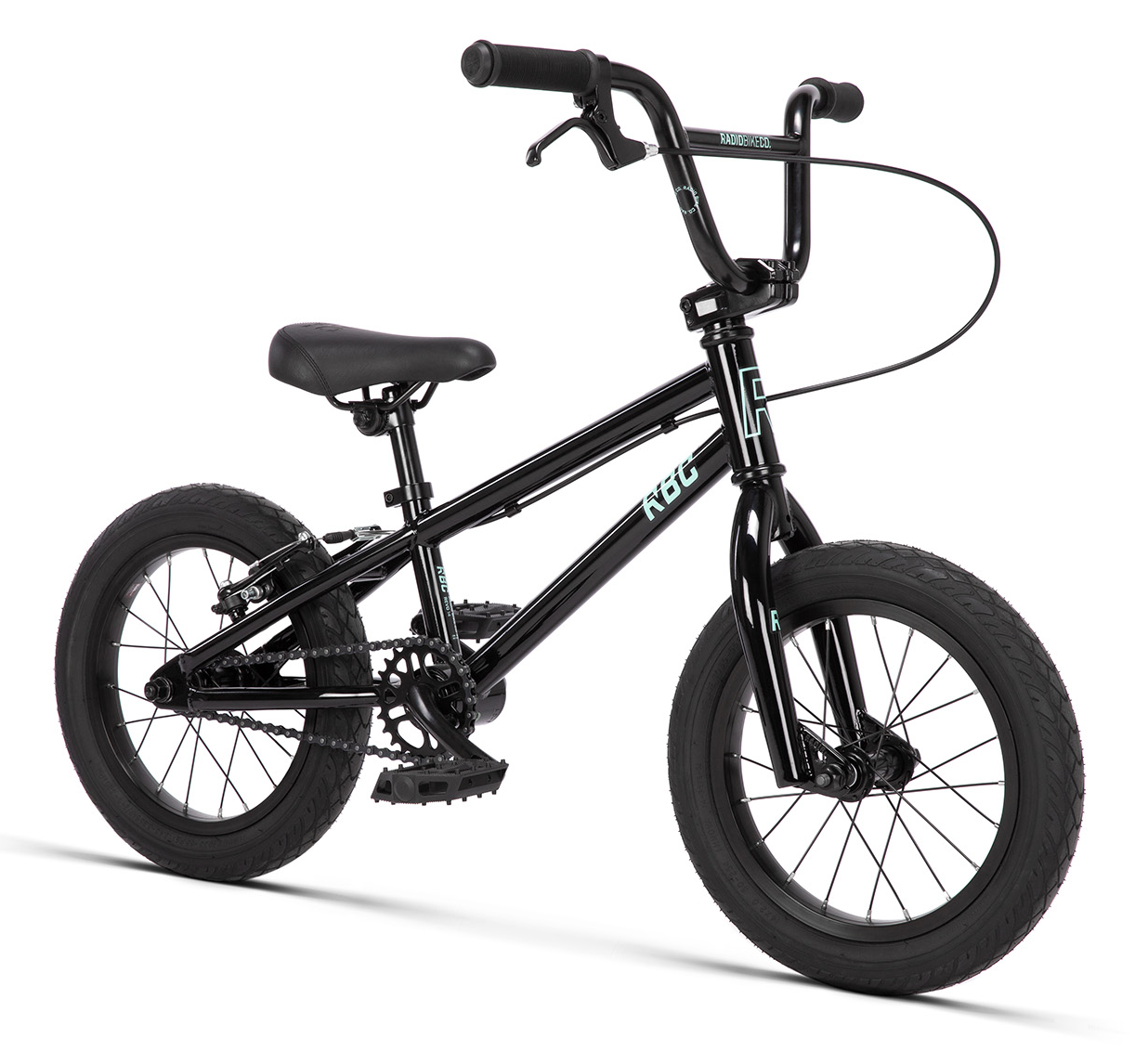

Radio Revo 14" BMX Bike

The Radio Revo 14 inch bike is an awesome rig for young riders that need a first BMX bike.

The components on the Revo 14 inch as been chosen so that it's easy to maintain and ready to shred!

The Revo is packed full of great features like 25-9 gearing (for easy drop ins at the skatepark) and short/responsive geometry (for easier jumping and manuals), as well as a railed seat and V-brake to make it bike safe and comfortable for the first-time user.

Even small details like slimmed down tubing allow the little Radio Revo bike to be as light as possible for more chance to catch air!

Specifications

• Frame: Radio 'Revo 14' frame, full 1020 hi-ten

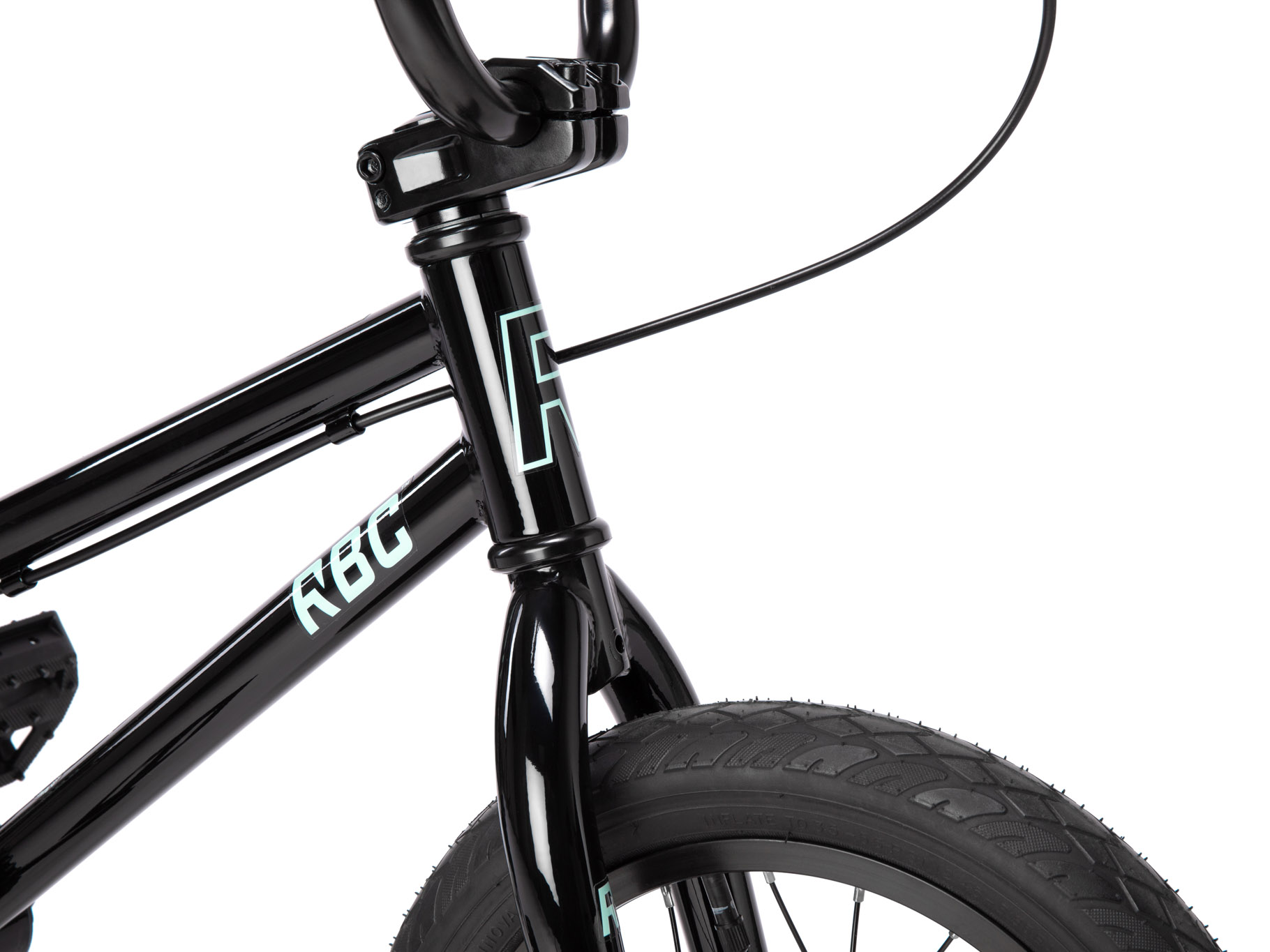

• Fork: Radio 'Rookie 14' 1020 hi-ten fork, tapered legs

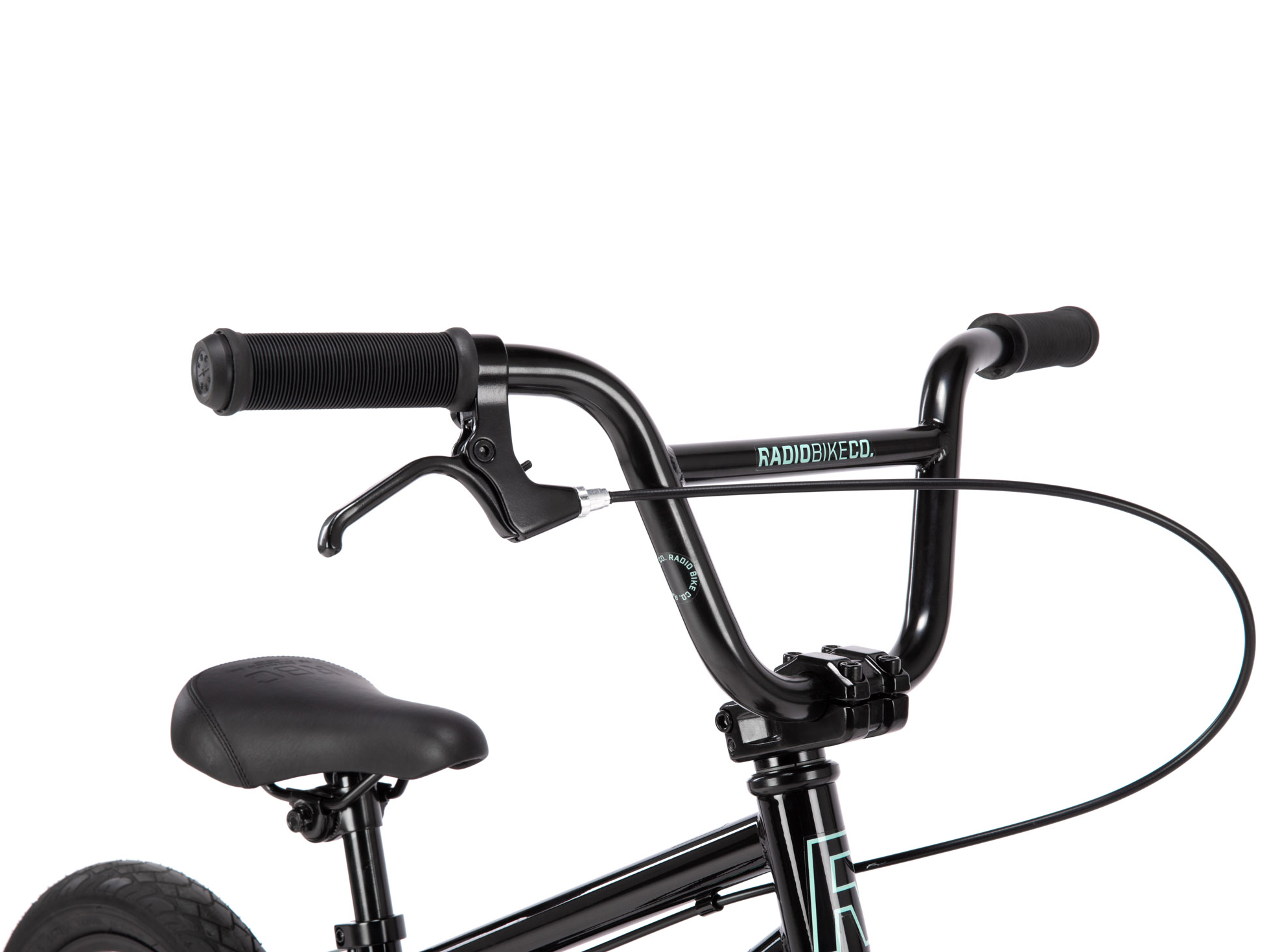

• Handlebar: Radio 'Revo 14' bar, hi-ten
• Grips: Radio 'Junior' grips, flangeless, 110mm
• Stem: Salt 'Junior' topload stem, 40mm reach
• Headset: FSA a-head-set loose ball
• Brake lever: Radio 'Junior' alloy brake lever
• Brake: Radio 'AM' caliper brake, alloy, front / Radio 'AM-V' V-brake, alloy, rear

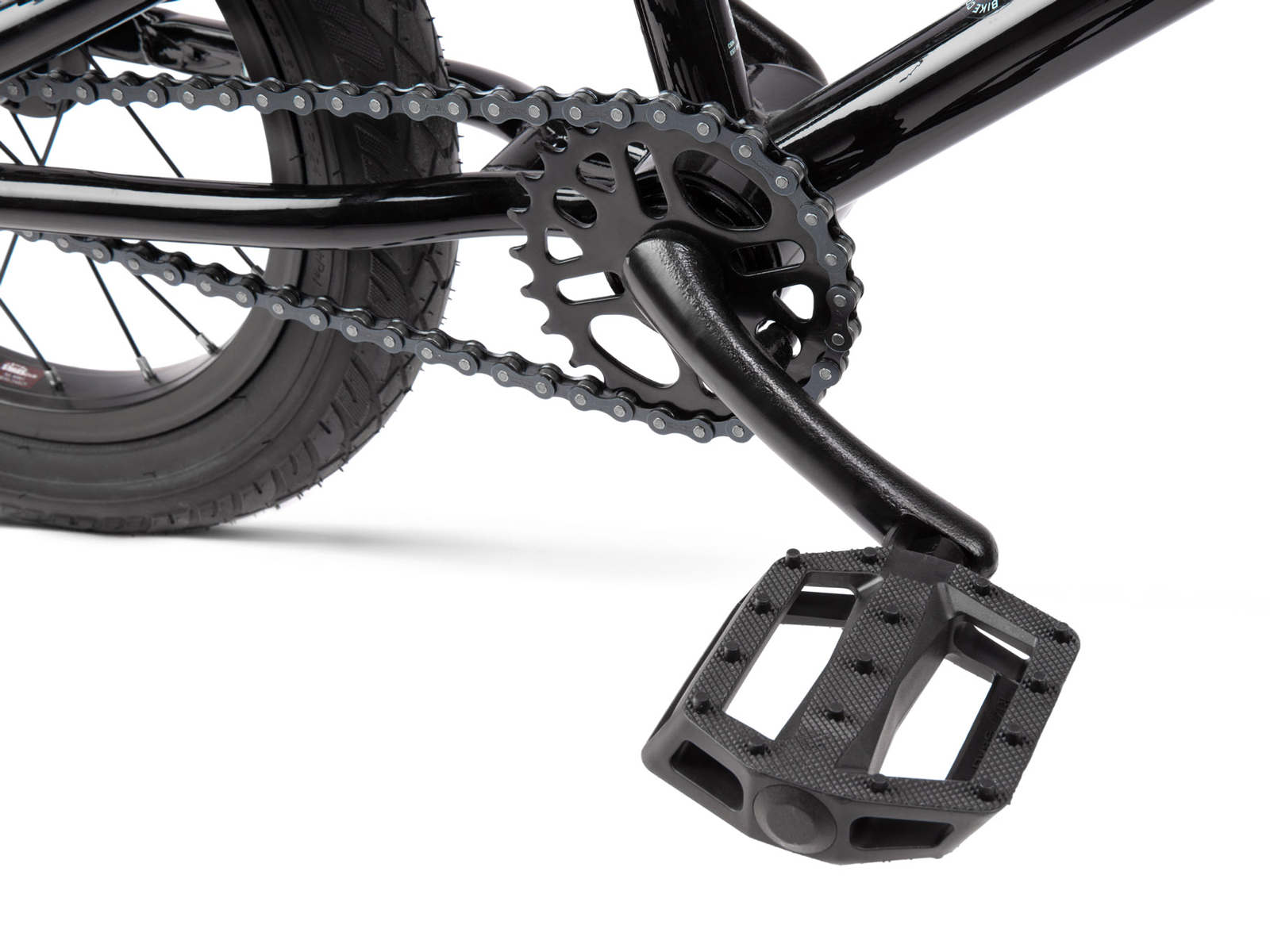

• Crank: Radio 'Rookie' 1pc crank, forged, Cr-Mo, 102mm
• BB: Radio 'US' BB set, looseball
• Pedals: Radio 'Junior' pedals, nylon
• Chain: KMC S1 chain
• Sprocket: Radio 'Rookie' steel 25T sprocket

• Front hub: Radio 'Rookie' steel hub, Lb, 20H

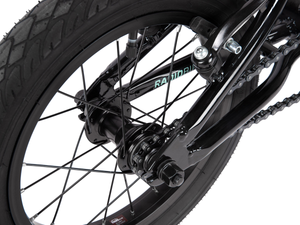

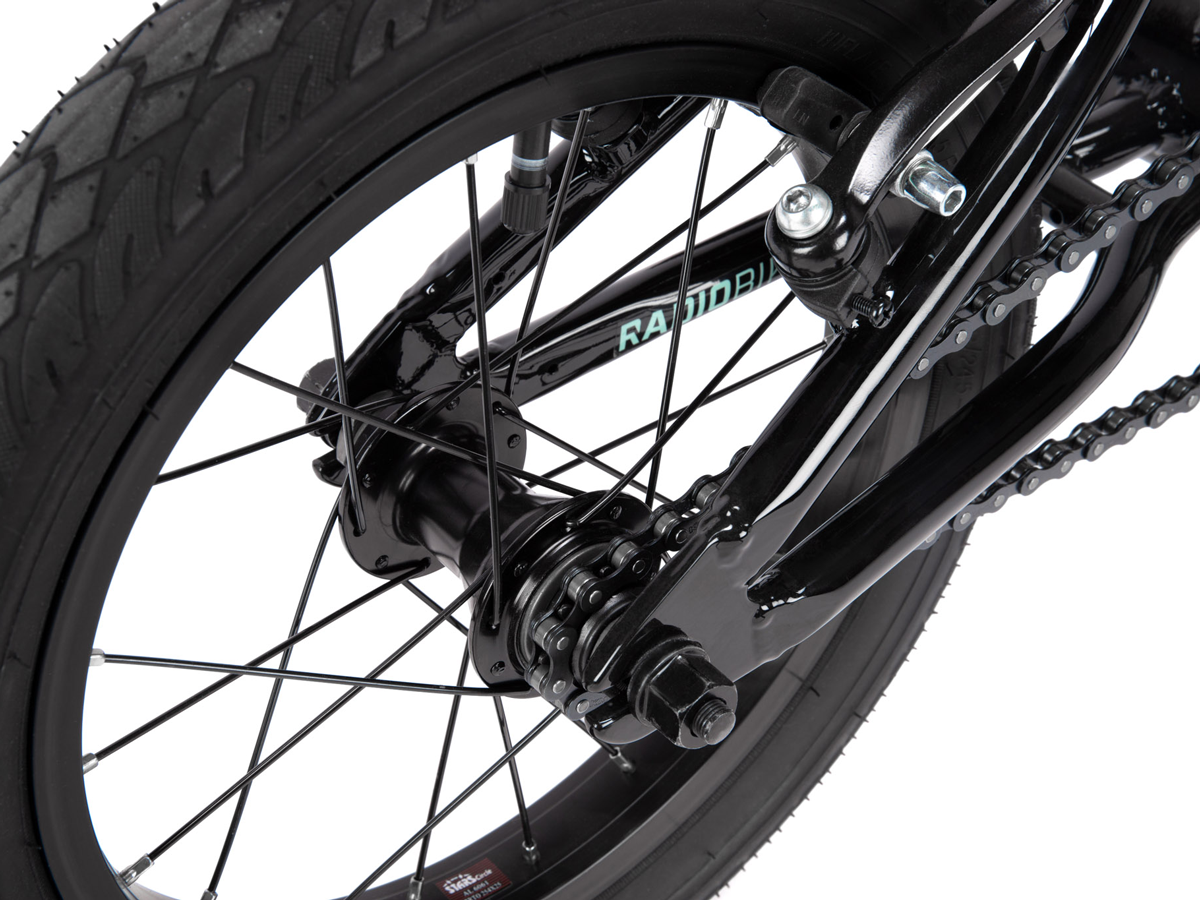

• Rear hub: Radio 'Rookie' steel hub, Lb, 20H, 9t cassette
• Rims: Salt 'AM' rim, straight single wall, 20H
• Seat: Radio 'Century' railed seat
• Seat post: Radio 'AM' alloy seat post 250mm
• Seat clamp: Radio slim alloy seat clamp
• Tyres: Radio 'Rookie' tyres, 2.0″ front & rear
• Weight: 8.825kg

Frame geometry:

• 13.7" Top tube length
• 10.55" Chain stay length
• 72° Head tube angle
• 73° Seat tube angle
• 7.5" Bottom bracket height
• 5.5" Standover height

Handlebar geometry:

• 6.5" Rise
• 22.4" Width
• 8° Backsweep
• 2.5° Upsweep
