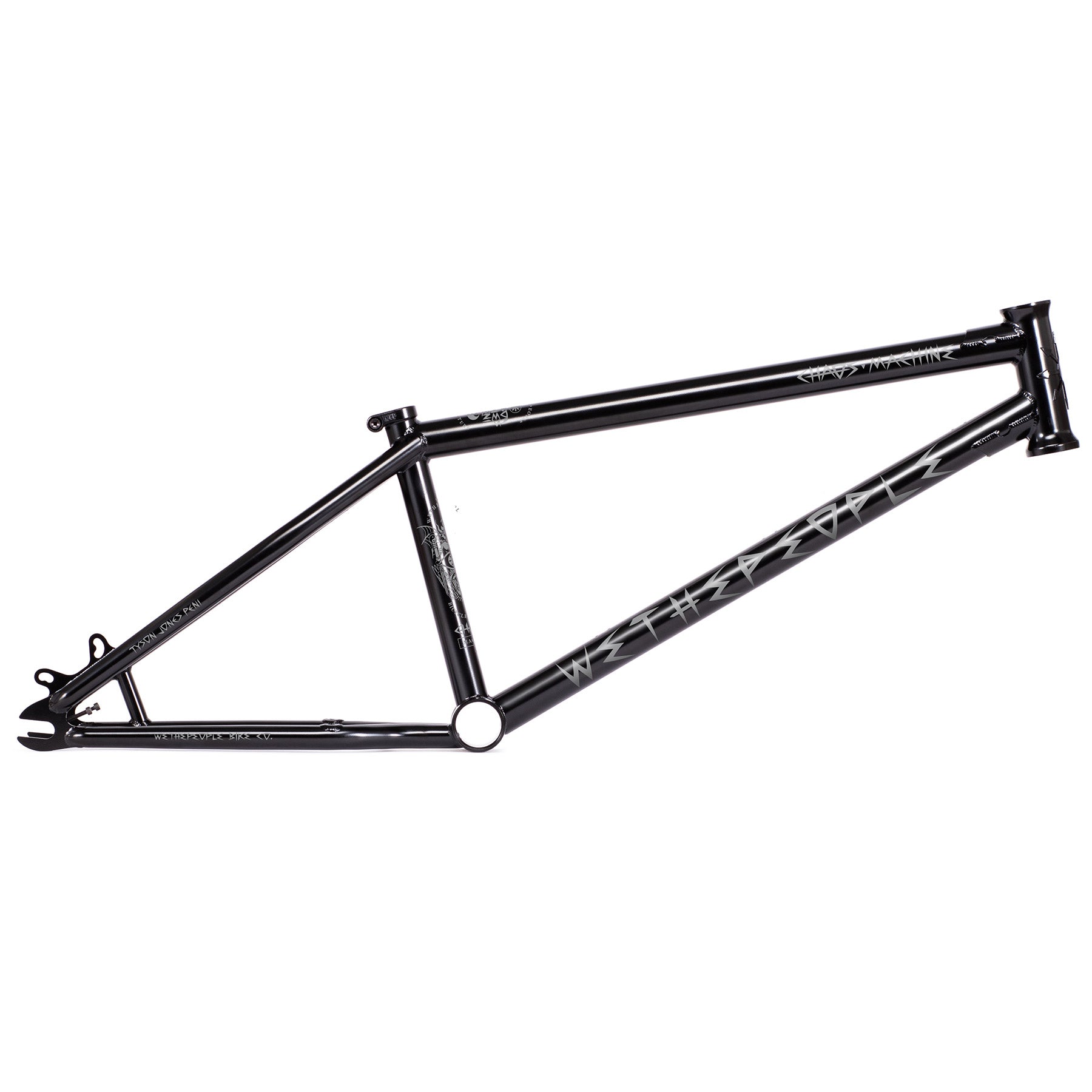

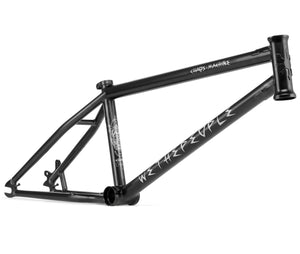

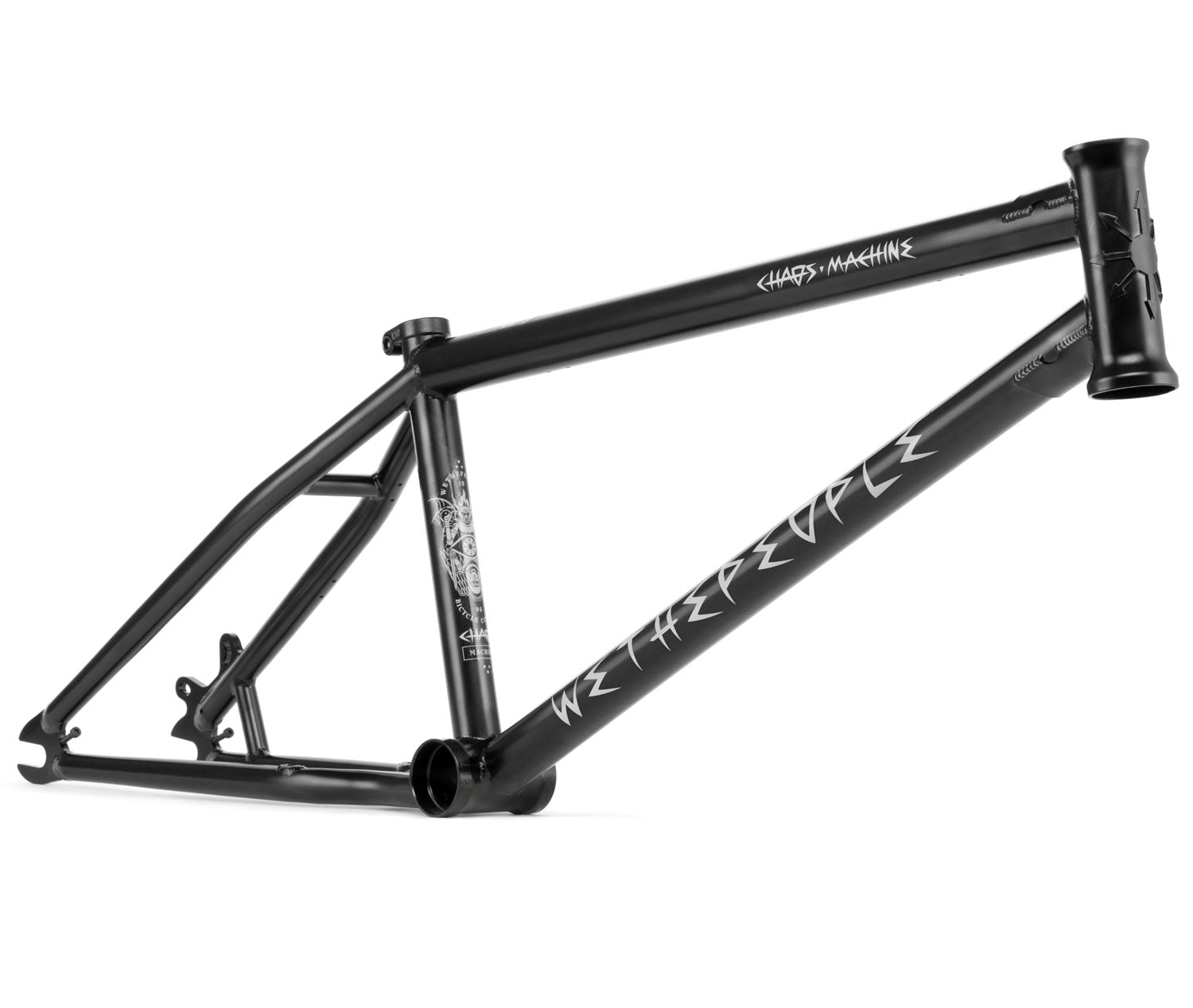

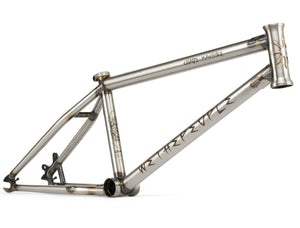

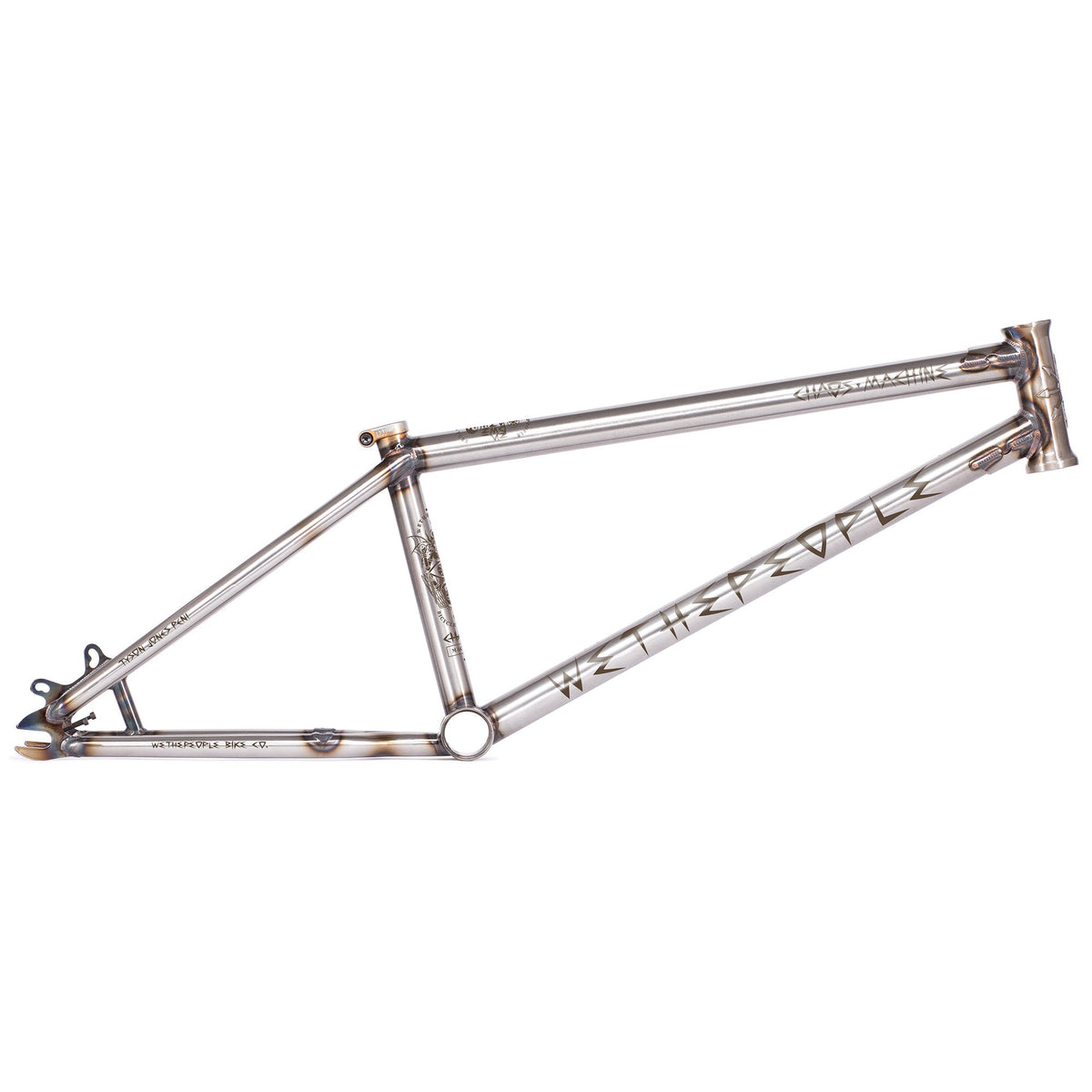

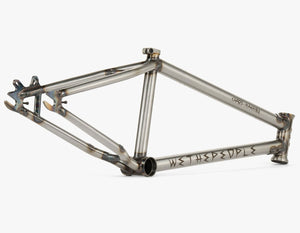

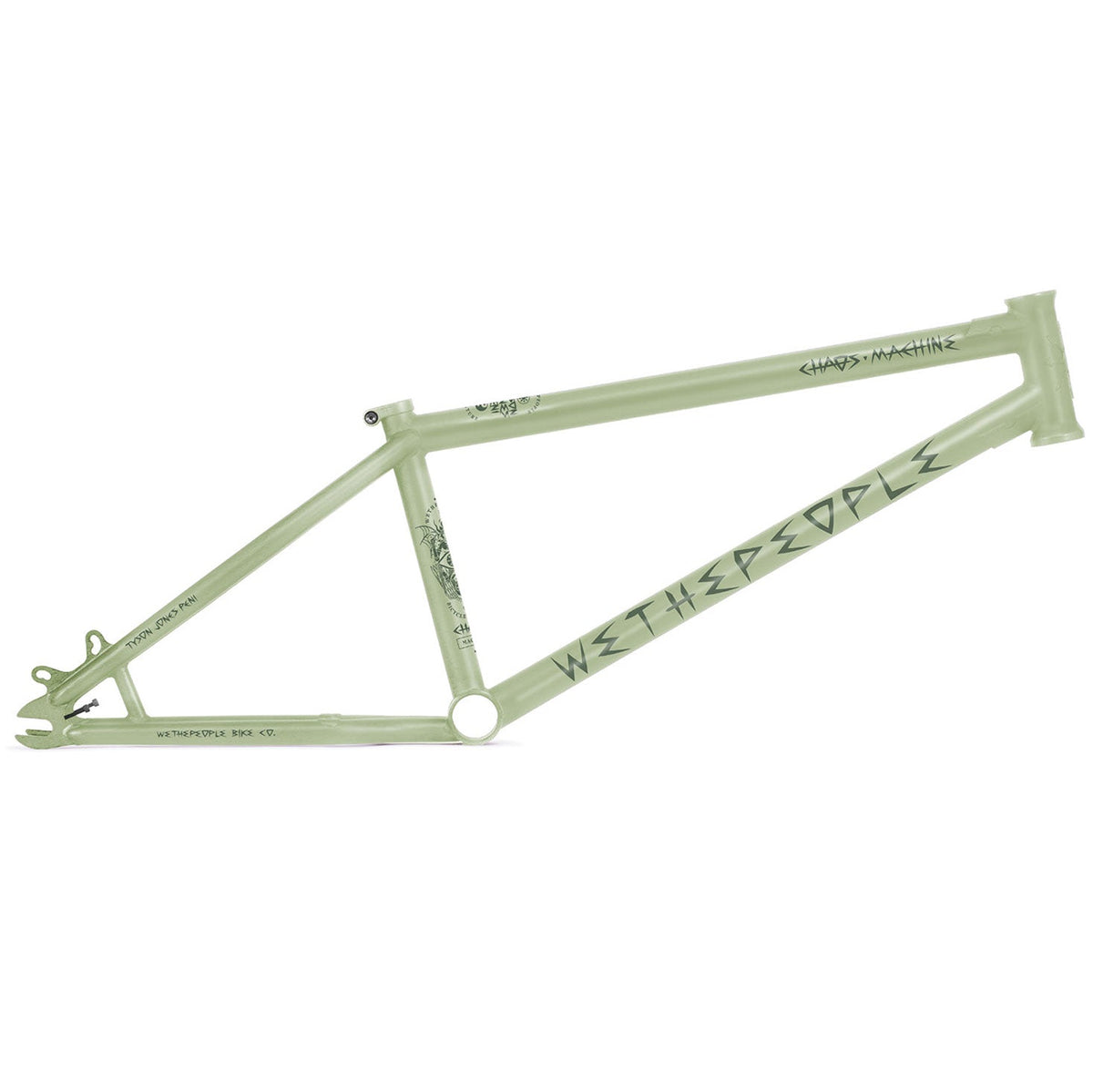

Wethepeople Chaos Machine Frame (Tyson Jones-Peni Signature)

Wethepeople BMX nailed it with the Chaos Machine frame, designed in collaboration with Backbone BMX owner Tyson Jones-Peni.

Tyson wanted a bigger, faster version of the popular WTP Patrol, so they crafted a frame with a super long 14"+ rear end and a tall 9.5" stand over for extra stability.

The standout feature? A disc brake mount—totally unique for freestyle bikes—giving you better control when things get wild on the trails. From the tough tubing and "CHAOS" seatstay bridge to the brazed head tube logo and slick decals, this frame packs serious personality and performance.

SPECS:

• TOP TUBE LENGTH: 21", 21.35" & 21.7"
• CHAIN STAY LENGTH: 14.1" (slammed) – 14.75" (optimized for 14.1" / 14.35" / 14.7" with 30/9 gearing)
• HEAD TUBE ANGLE: 74.25°
• SEAT TUBE ANGLE: 71°
• BB HEIGHT: 11.5"
• STAND OVER HEIGHT: 9.5"

FEATURES:

• Butted, Japanese seamless 4130 crmo tubing
• 74mm mid size BB

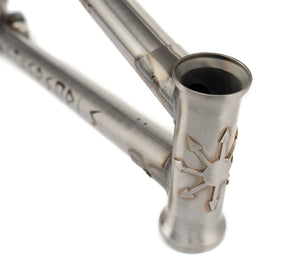

• 127mm cnc machined and heat-treated head tube for less spacers with an uncut fork
• Chaos logo head tube badge

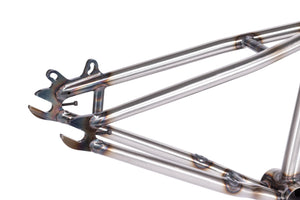

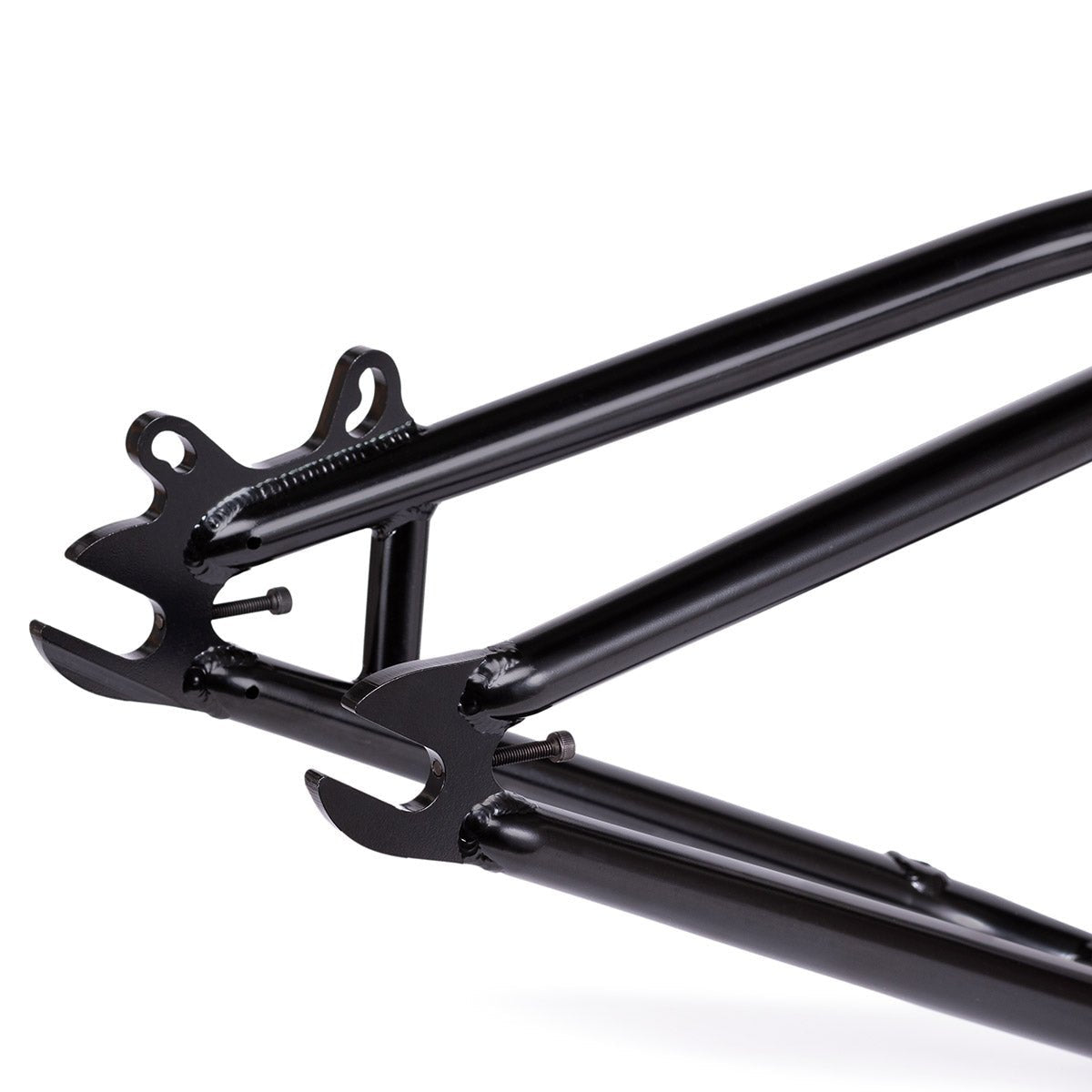

• Minimal size dropouts, not suitable for pegs, 6mm cnc machined heat-treated CRMO
• Integrated chain tensioners

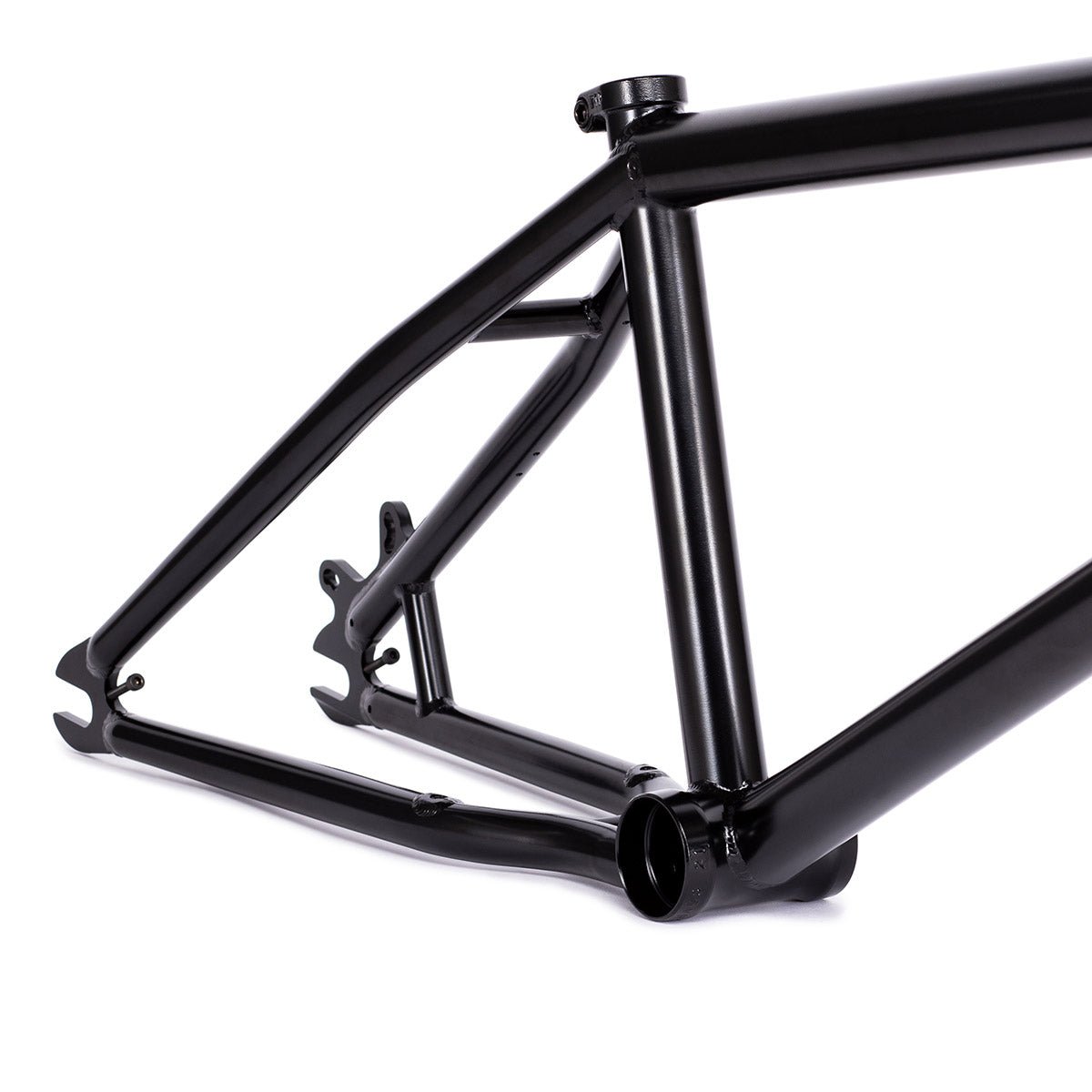

• IS Disc mount brakes for 120-160mm rotors, removable brake mounts
• Removable U-Brake mount on chainstay as second option
• Tyson Jones-Peni signature trail/transition frame
• Long and stable trail geometry
• Unique disc brake mount works in multiple chain stay positions
• Larger radius stay tubing for a stiffer and stronger back end
• CNC machined 'CHAOS' seat stay bridge
• Larger 1.8mm welding at head tube

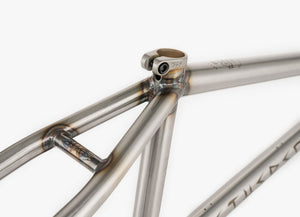

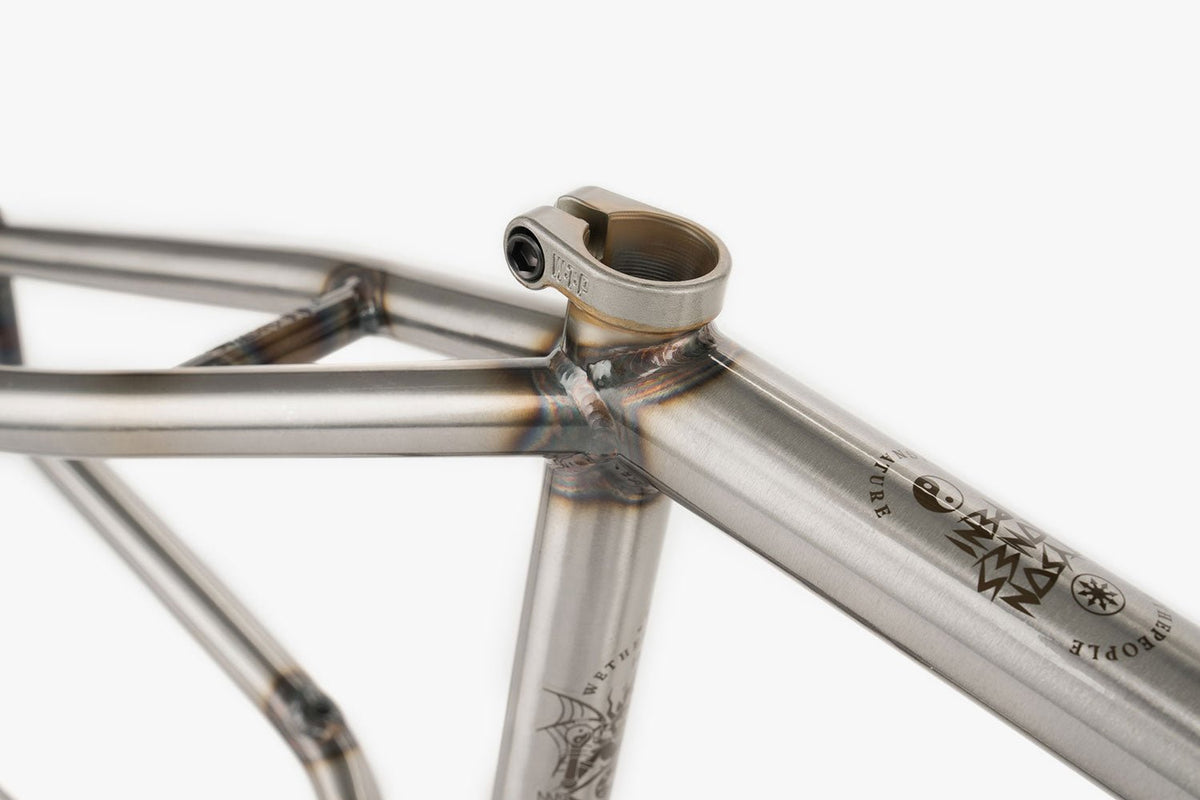

• Investment cast seat clamp
• Wider rear triangle allows clearance for a 2.4" tire

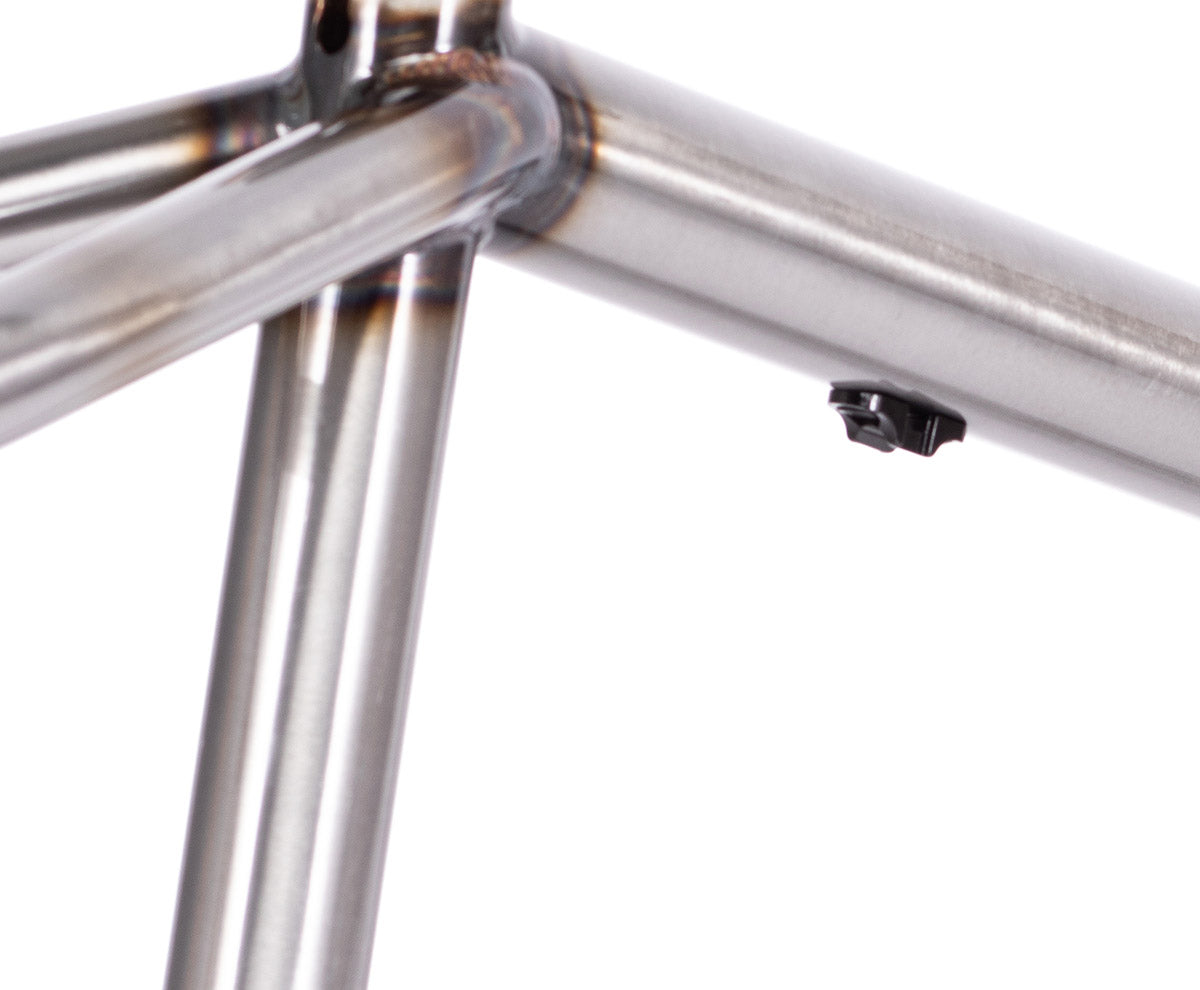

• WTP top tube and down tube gusset
• Includes LIFETIME GUARANTEE
